Civil Registrar System Class Diagram describes the structure of a Civil Registrar System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Civil Registrar System are Civil, Birth, Death, Blocks, Cases, Civilization.
Classes of Civil Registrar System Class Diagram:
- Civil Class : Manage all the operations of Civil
- Birth Class : Manage all the operations of Birth
- Death Class : Manage all the operations of Death
- Blocks Class : Manage all the operations of Blocks
- Cases Class : Manage all the operations of Cases
- Civilization Class : Manage all the operations of Civilization
Classes and their attributes of Civil Registrar System Class Diagram:
- Civil Attributes : civil_id, civil_name, civil_birth, civil_death, civil_age, civil_description
- Birth Attributes : birth_id, birth_civil_id, birth_date, birth_place, birth_description
- Death Attributes : death_id, death_civil_id, death_date, death_place, death_description
- Blocks Attributes : blocks_id, blocks_name, blocks_type, blocks_description
- Cases Attributes : cases_id, cases_name, cases_type, cases_description
- Civilization Attributes : civilization_id, civilization_name, civilization_type, civilization_description
Classes and their methods of Civil Registrar System Class Diagram:
- Civil Methods : addCivil(), editCivil(), deleteCivil(), updateCivil(), saveCivil(), searchCivil()
- Birth Methods : addBirth(), editBirth(), deleteBirth(), updateBirth(), saveBirth(), searchBirth()
- Death Methods : addDeath(), editDeath(), deleteDeath(), updateDeath(), saveDeath(), searchDeath()
- Blocks Methods : addBlocks(), editBlocks(), deleteBlocks(), updateBlocks(), saveBlocks(), searchBlocks()
- Cases Methods : addCases(), editCases(), deleteCases(), updateCases(), saveCases(), searchCases()
- Civilization Methods : addCivilization(), editCivilization(), deleteCivilization(), updateCivilization(), saveCivilization(), searchCivilization()

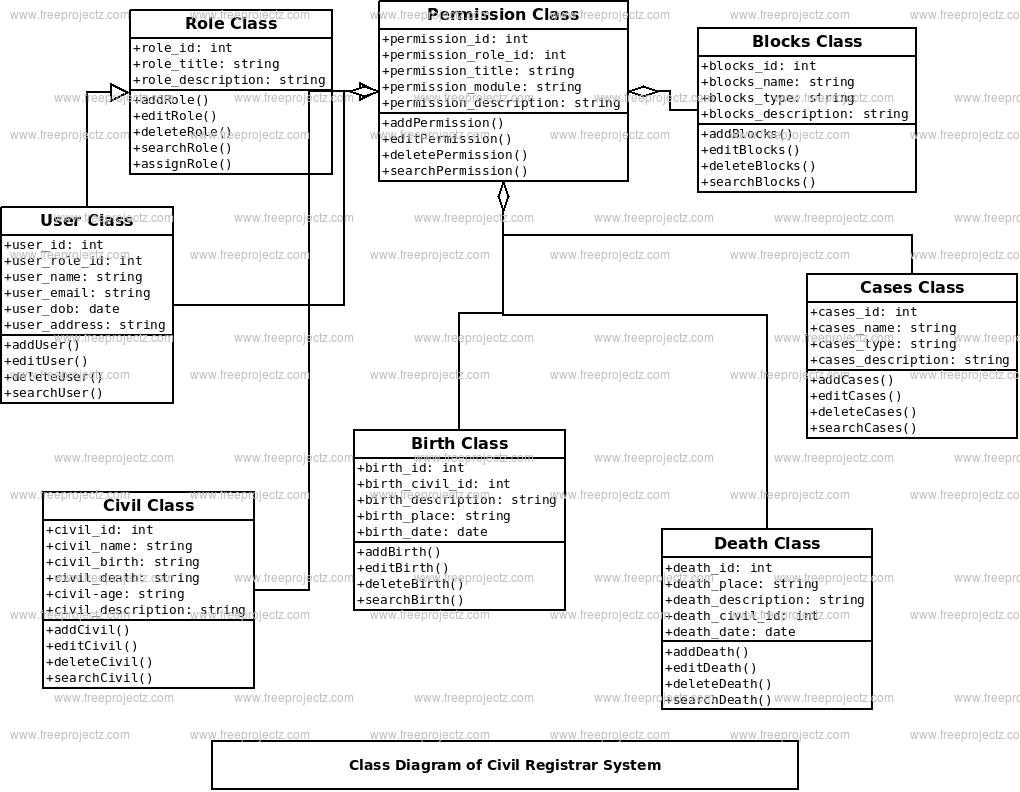

Class Diagram of Civil Registrar System :
