Crime Record Management System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

Crime Record Management System Class Diagram describes the structure of a Crime Record Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Crime Record Management System are Crime, Complaints, FIR, Charge Sheet, Presioner, Criminals.

Classes of Crime Record Management System Class Diagram:

  • Crime Class : Manage all the operations of Crime
  • Complaints Class : Manage all the operations of Complaints
  • FIR Class : Manage all the operations of FIR
  • Charge Sheet Class : Manage all the operations of Charge Sheet
  • Presioner Class : Manage all the operations of Presioner
  • Criminals Class : Manage all the operations of Criminals

Classes and their attributes of Crime Record Management System Class Diagram:

  • Crime Attributes : crime_id, crime_criminal_id, crime_name, crime_type, crime_description
  • Complaints Attributes : complain_id, complain_name, complain_type, complain_description
  • FIR Attributes : FIR_id, FIR_name, FIR_type, FIR_description
  • Charge Sheet Attributes : charger_sheet__id, charger_sheet__fine, charger_sheet__type, charger_sheet__description
  • Presioner Attributes : prisoner_id, prisoner_crime_id, prisoner_name, prisoner_mobile, prisoner_email, prisoner_username, prisoner_password, prisoner_address
  • Criminals Attributes : criminal_id, criminal_crime_id, criminal_name, criminal_mobile, criminal_email, criminal_username, criminal_password, criminal_address

Classes and their methods of Crime Record Management System Class Diagram:

  • Crime Methods : addCrime(), editCrime(), deleteCrime(), updateCrime(), saveCrime(), searchCrime()
  • Complaints Methods : addComplaints(), editComplaints(), deleteComplaints(), updateComplaints(), saveComplaints(), searchComplaints()
  • FIR Methods : addFIR(), editFIR(), deleteFIR(), updateFIR(), saveFIR(), searchFIR()
  • Charge Sheet Methods : addCharge Sheet(), editCharge Sheet(), deleteCharge Sheet(), updateCharge Sheet(), saveCharge Sheet(), searchCharge Sheet()
  • Presioner Methods : addPresioner(), editPresioner(), deletePresioner(), updatePresioner(), savePresioner(), searchPresioner()
  • Criminals Methods : addCriminals(), editCriminals(), deleteCriminals(), updateCriminals(), saveCriminals(), searchCriminals()

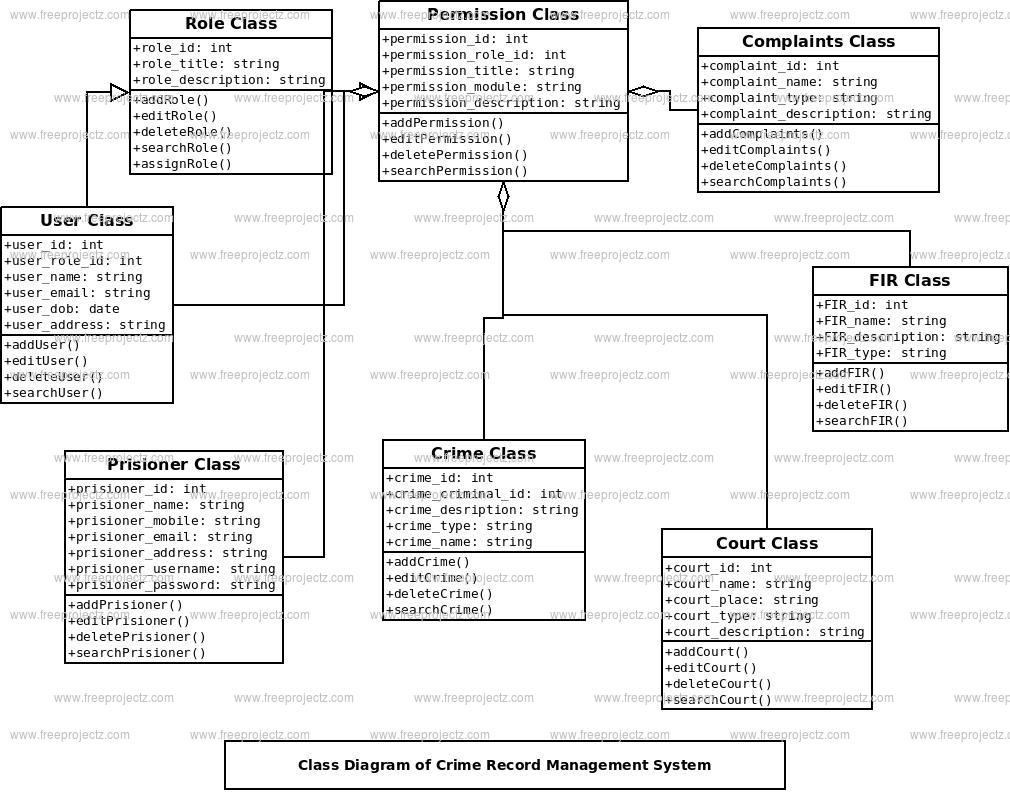

Class Diagram of Crime Record Management System :

Class Diagram Image:
Crime Record Management System Class Diagram
