Library Management System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

Library Management System Class Diagram describes the structure of a Library Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Library Management System are Student, Books, Issues, Librarian, Member, Address.

Classes of Library Management System Class Diagram:

  • Student Class : Manage all the operations of Student
  • Books Class : Manage all the operations of Books
  • Issues Class : Manage all the operations of Issues
  • Librarian Class : Manage all the operations of Librarian
  • Member Class : Manage all the operations of Member
  • Address Class : Manage all the operations of Address

Classes and their attributes of Library Management System Class Diagram:

  • Student Attributes : student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
  • Books Attributes : book_id, book_student_id, book_name, book_author, book_publication_date, book_type, book_price, book_description
  • Issues Attributes : issue_id, issue_book_id, issue_student_id, issue_date, issue_renewl, issue_expiry, issue_description
  • Librarian Attributes : libraian_id, libraian_name, libraian_mobile, libraian_email, libraian_username, libraian_password, libraian_address
  • Member Attributes : memeber_id, memeber_name, memeber_mobile, memeber_email, memeber_username, memeber_password, memeber_address
  • Address Attributes : address_id, address_student_id, address_place, address_type, address_description

Classes and their methods of Library Management System Class Diagram:

  • Student Methods : addStudent(), editStudent(), deleteStudent(), updateStudent(), saveStudent(), searchStudent()
  • Books Methods : addBooks(), editBooks(), deleteBooks(), updateBooks(), saveBooks(), searchBooks()
  • Issues Methods : addIssues(), editIssues(), deleteIssues(), updateIssues(), saveIssues(), searchIssues()
  • Librarian Methods : addLibrarian(), editLibrarian(), deleteLibrarian(), updateLibrarian(), saveLibrarian(), searchLibrarian()
  • Member Methods : addMember(), editMember(), deleteMember(), updateMember(), saveMember(), searchMember()
  • Address Methods : addAddress(), editAddress(), deleteAddress(), updateAddress(), saveAddress(), searchAddress()

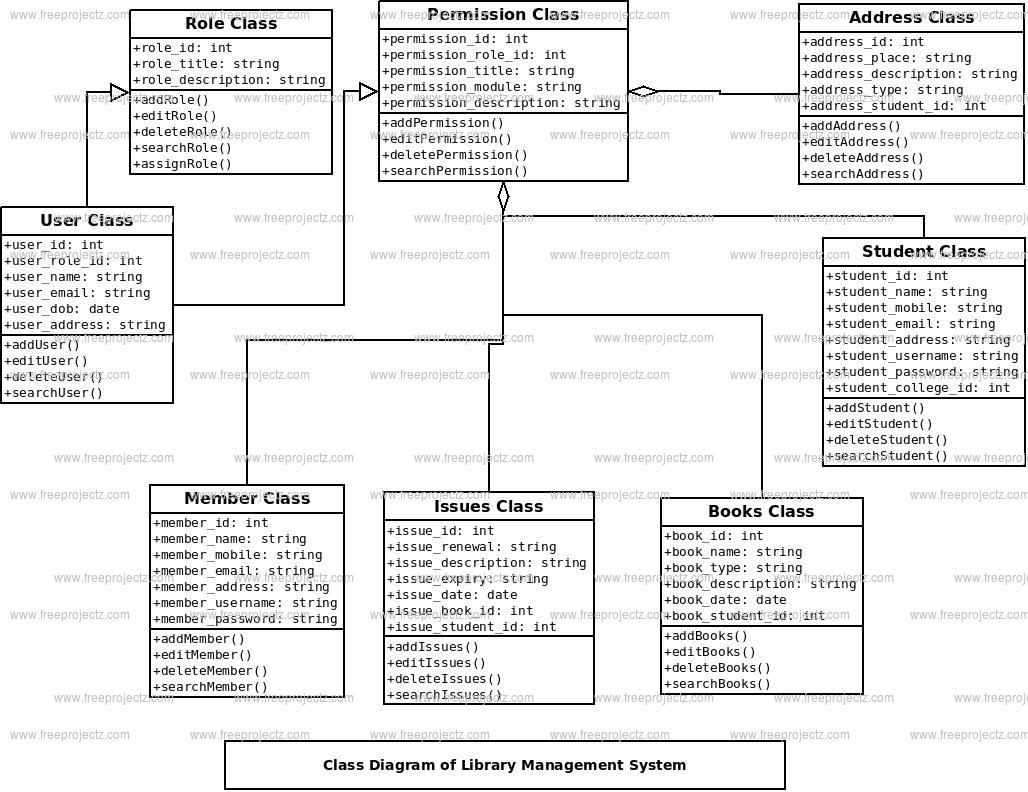

Class Diagram of Library Management System :

Class Diagram Image:
Library Management System Class Diagram
