Pizza Ordering System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

Pizza Ordering System Class Diagram describes the structure of a Pizza Ordering System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Pizza Ordering System are Pizza, Order, Customer, Order Status, Coupans, Payments.

Classes of Pizza Ordering System Class Diagram:

  • Pizza Class : Manage all the operations of Pizza
  • Order Class : Manage all the operations of Order
  • Customer Class : Manage all the operations of Customer
  • Order Status Class : Manage all the operations of Order Status
  • Coupans Class : Manage all the operations of Coupans
  • Payments Class : Manage all the operations of Payments

Classes and their attributes of Pizza Ordering System Class Diagram:

  • Pizza Attributes : pizza_id, pizza_name, pizza_type, pizza_description
  • Order Attributes : order_id, order_customer_id order_type, order_number, order_description
  • Customer Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
  • Order Status Attributes : status_id, status_order_id, status_name, status_update, status_time, status_date, status_type, status_description
  • Coupans Attributes : coupan_id, coupan_pizza_id, coupan_name, coupan_type, coupan_description
  • Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description

Classes and their methods of Pizza Ordering System Class Diagram:

  • Pizza Methods : addPizza(), editPizza(), deletePizza(), updatePizza(), savePizza(), searchPizza()
  • Order Methods : addOrder(), editOrder(), deleteOrder(), updateOrder(), saveOrder(), searchOrder()
  • Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
  • Order Status Methods : addOrder Status(), editOrder Status(), deleteOrder Status(), updateOrder Status(), saveOrder Status(), searchOrder Status()
  • Coupans Methods : addCoupans(), editCoupans(), deleteCoupans(), updateCoupans(), saveCoupans(), searchCoupans()
  • Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()

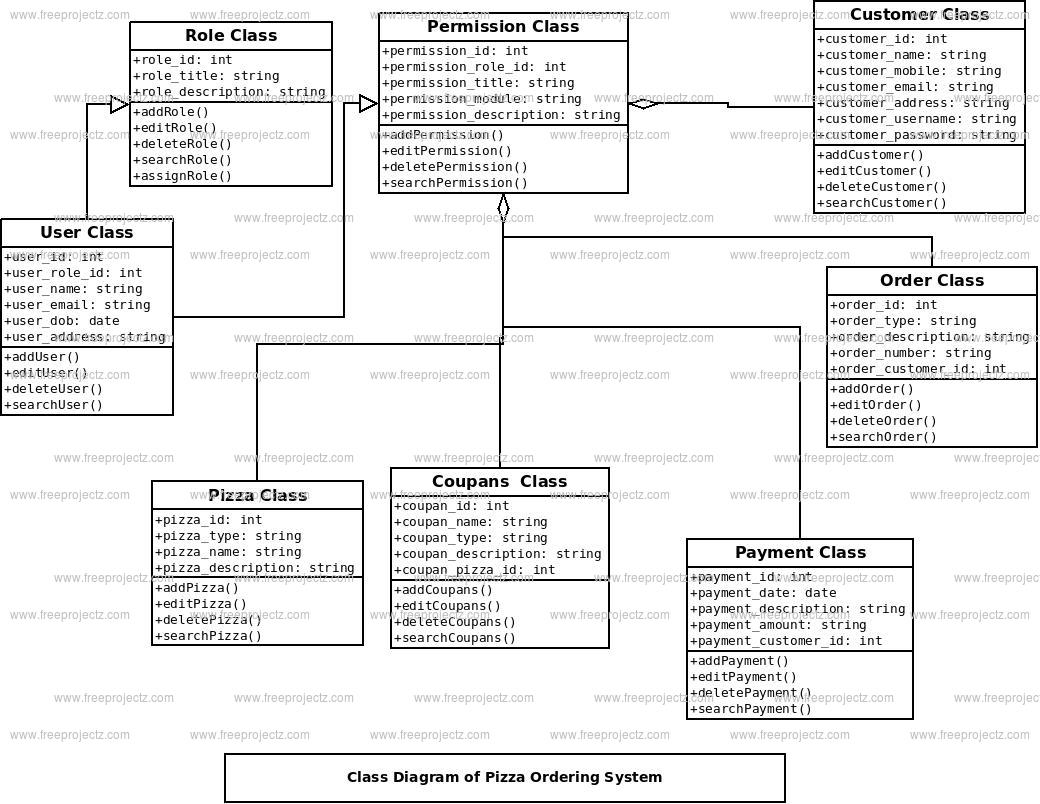

Class Diagram of Pizza Ordering System :

Class Diagram Image:
Pizza Ordering System Class Diagram
