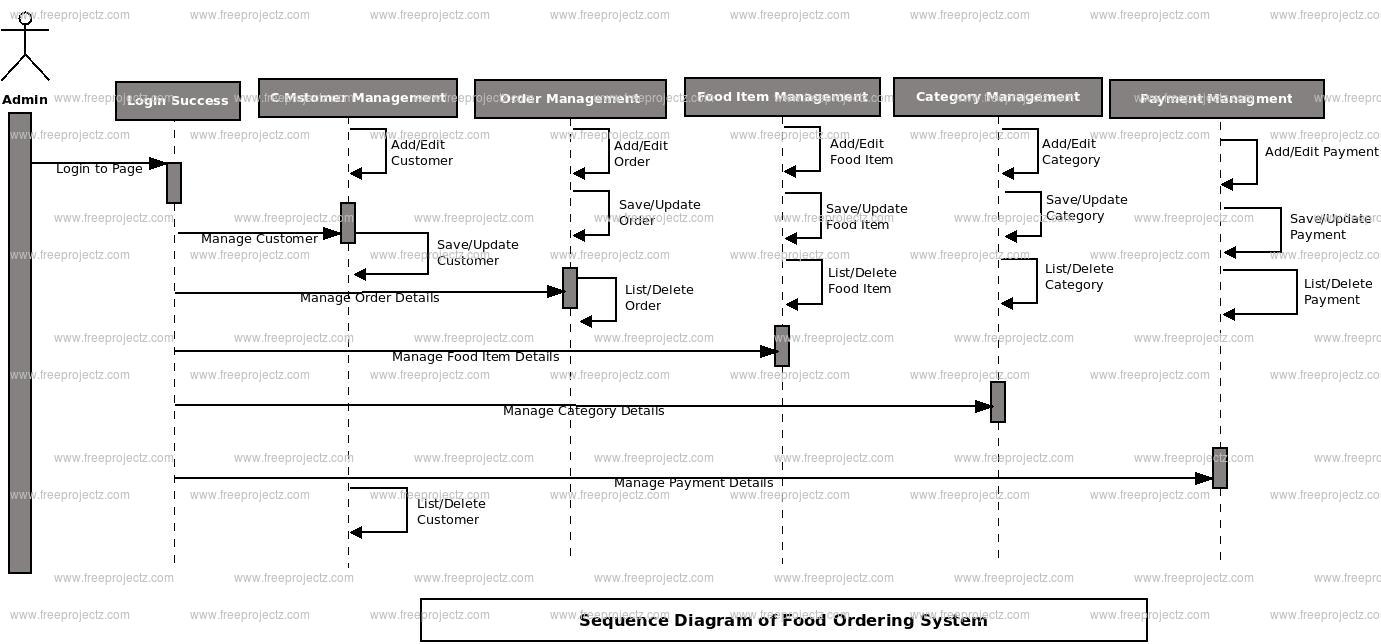

This is the UML sequence diagram of Food Ordering System which shows the interaction between the objects of Order, Delivery, Category, Customer, Food Item. The instance of class objects involved in this UML Sequence Diagram of Food Ordering System are as follows:
- Order Object
- Delivery Object
- Category Object
- Customer Object
- Food Item Object
Login Sequence Diagram of Food Ordering System:
This is the Login Sequence Diagram of Food Ordering System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Category, Order, Delivery, Food Item, Customer. All the pages such as Delivery, Food Item, Customer are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Food Ordering System. The various objects in the Food Item, Category, Order, Delivery, and Customer page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Food Ordering System which shows the interaction between the objects of Order, Delivery, Category, Customer, Food Item. The instance of class objects involved in this UML Sequence Diagram of Food Ordering System are as follows:
- Order Object
- Delivery Object
- Category Object
- Customer Object
- Food Item Object
