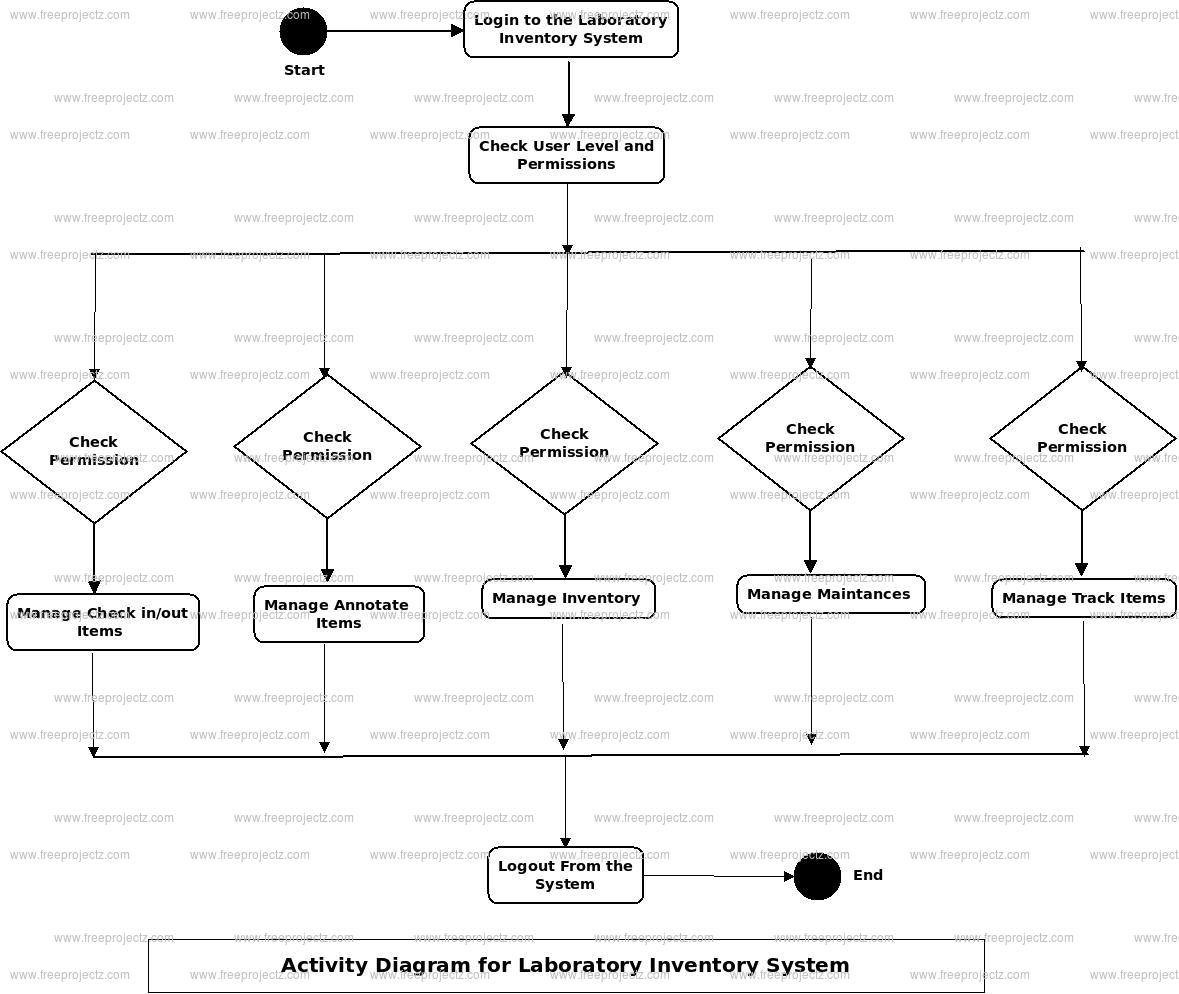

This is the Activity UML diagram of Laboratory Inventory System which shows the flows between the activity of Annotate Items, Check in/out Items, Inventory Valuation, Track Items, Record Information. The main activity involved in this UML Activity Diagram of Laboratory Inventory System are as follows:
- Annotate Items Activity
- Check in/out Items Activity
- Inventory Valuation Activity
- Track Items Activity
- Record Information Activity
Features of the Activity UML diagram of Laboratory Inventory System
- Admin User can search Annotate Items, view description of a selected Annotate Items, add Annotate Items, update Annotate Items and delete Annotate Items.
- Its shows the activity flow of editing, adding and updating of Check in/out Items
- User will be able to search and generate report of Inventory Valuation, Track Items, Record Information
- All objects such as ( Annotate Items, Check in/out Items, Record Information) are interlinked
- Its shows the full description and flow of Annotate Items, Track Items, Record Information, Inventory Valuation, Check in/out Items
Login Activity Diagram of Laboratory Inventory System:
This is the Login Activity Diagram of Laboratory Inventory System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Inventory Valuation, Annotate Items, Check in/out Items, Record Information, Track Items. All the pages such as Check in/out Items, Record Information, Track Items are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Laboratory Inventory System. The various objects in the Record Information, Inventory Valuation, Annotate Items, Check in/out Items, and Track Items page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
