Bike Showroom Management System Activity Diagram
This is the Activity UML diagram of Bike Showroom Management System which shows the flows between the activity of Repair Bike, Payment, Bike, Branches center, Insurance. The main activity involved in this UML Activity Diagram of Bike Showroom Management System are as follows:
- Repair Bike Activity
- Payment Activity
- Bike Activity
- Branches center Activity
- Insurance Activity
Features of the Activity UML diagram of Bike Showroom Management System
- Admin User can search Repair Bike, view description of a selected Repair Bike, add Repair Bike, update Repair Bike and delete Repair Bike.
- Its shows the activity flow of editing, adding and updating of Payment
- User will be able to search and generate report of Bike, Branches center, Insurance
- All objects such as ( Repair Bike, Payment, Insurance) are interlinked
- Its shows the full description and flow of Repair Bike, Branches center, Insurance, Bike, Payment
Login Activity Diagram of Bike Showroom Management System:
This is the Login Activity Diagram of Bike Showroom Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Bike, Repair Bike, Payment, Insurance, Branches center. All the pages such as Payment, Insurance, Branches center are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Bike Showroom Management System. The various objects in the Insurance, Bike, Repair Bike, Payment, and Branches center page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Bike Showroom Management System Class Diagram
Bike Showroom Management System Class Diagram describes the structure of a Bike Showroom Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Bike Showroom Management System are Bike, Booking, Repair Bike, Insurance, Customer, Payment.
Classes of Bike Showroom Management System Class Diagram:
- Bike Class : Manage all the operations of Bike
- Booking Class : Manage all the operations of Booking
- Repair Bike Class : Manage all the operations of Repair Bike
- Insurance Class : Manage all the operations of Insurance
- Customer Class : Manage all the operations of Customer
- Payment Class : Manage all the operations of Payment
Classes and their attributes of Bike Showroom Management System Class Diagram:
- Bike Attributes : bike_id, bike_customer_id, bike_number, bike_company bike_type, bike_description
- Booking Attributes : booking_id, booking_title, booking_type, booking_date, booking_description
- Repair Bike Attributes : repair_bike_id, repair_bike_customer_id, repair_bike_number, repair_bike_bill, repair_bike_type, repair_bike_description
- Insurance Attributes : insurance_id, insurance_bike_id, insurance_number, insurance_date, insurance_expiry, insurance_amount, insurance_type, insurance_description
- Customer Attributes : Customer_id, Customer_name, Customer_mobile, Customer_email, Customer_username, Customer_password, Customer_address
- Payment Attributes : payment_id, payment_customer_id, payment_date, payment_bill, payment_type, payment_description
Classes and their methods of Bike Showroom Management System Class Diagram:
- Bike Methods : addBike(), editBike(), deleteBike(), updateBike(), saveBike(), searchBike()
- Booking Methods : addBooking(), editBooking(), deleteBooking(), updateBooking(), saveBooking(), searchBooking()
- Repair Bike Methods : addRepair Bike(), editRepair Bike(), deleteRepair Bike(), updateRepair Bike(), saveRepair Bike(), searchRepair Bike()
- Insurance Methods : addInsurance(), editInsurance(), deleteInsurance(), updateInsurance(), saveInsurance(), searchInsurance()
- Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
- Payment Methods : addPayment(), editPayment(), deletePayment(), updatePayment(), savePayment(), searchPayment()
Class Diagram of Bike Showroom Management System :
- Posted By: freeproject
- Comments: 0
Bike Showroom Management System Component Diagram

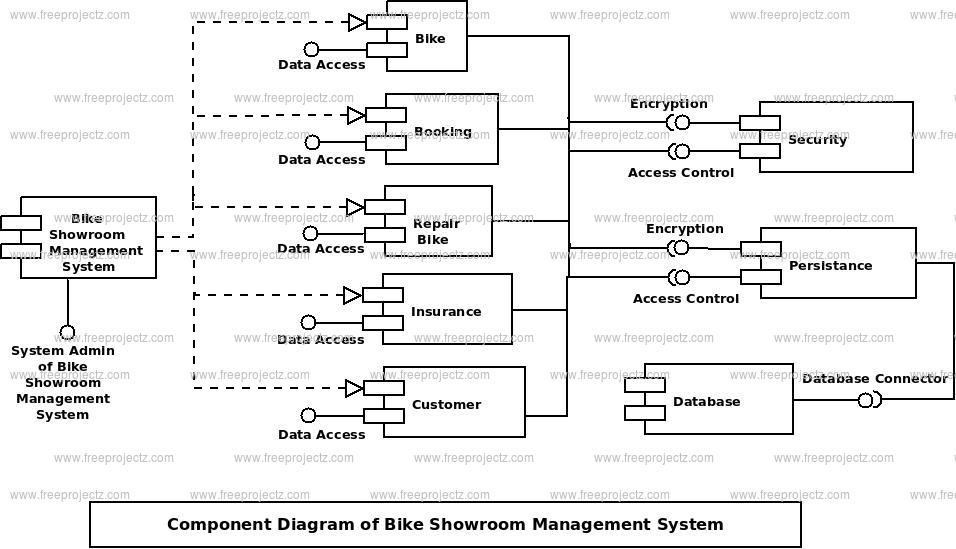

This is a Component diagram of Bike Showroom Management System which shows components, provided and required interfaces, ports, and relationships between the Customer, Branches center, Insurance, Booking and Bike. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Bike Showroom Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Bike Showroom Management System:
- Customer Component
- Branches center Component
- Insurance Component
- Booking Component
- Bike Component
Featues of Bike Showroom Management System Component Diagram:
- You can show the models the components of Bike Showroom Management System.
- Model the database schema of Bike Showroom Management System
- Model the executables of an application of Bike Showroom Management System
- Model the system's source code of Bike Showroom Management System
- Posted By: freeproject
- Comments: 0
Bike Showroom Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Bike Showroom Management System Entity. The entity-relationship diagram of Bike Showroom Management System shows all the visual instrument of database tables and the relations between Booking, Insurance, Bike, Payment etc. It used structure data and to define the relationships between structured data groups of Bike Showroom Management System functionalities. The main entities of the Bike Showroom Management System are Bike, Booking, Repair Bike, Insurance, Customer and Payment.
Bike Showroom Management System entities and their attributes :
- Bike Entity : Attributes of Bike are bike_id, bike_customer_id, bike_number, bike_company bike_type, bike_description
- Booking Entity : Attributes of Booking are booking_id, booking_title, booking_type, booking_date, booking_description
- Repair Bike Entity : Attributes of Repair Bike are repair_bike_id, repair_bike_customer_id, repair_bike_number, repair_bike_bill, repair_bike_type, repair_bike_description
- Insurance Entity : Attributes of Insurance are insurance_id, insurance_bike_id, insurance_number, insurance_date, insurance_expiry, insurance_amount, insurance_type, insurance_description
- Customer Entity : Attributes of Customer are Customer_id, Customer_name, Customer_mobile, Customer_email, Customer_username, Customer_password, Customer_address
- Payment Entity : Attributes of Payment are payment_id, payment_customer_id, payment_date, payment_bill, payment_type, payment_description
Description of Bike Showroom Management System Database :
- The details of Bike is store into the Bike tables respective with all tables
- Each entity (Payment, Repair Bike, Customer, Booking, Bike) contains primary key and unique keys.
- The entity Repair Bike, Customer has binded with Bike, Booking entities with foreign key
- There is one-to-one and one-to-many relationships available between Customer, Insurance, Payment, Bike
- All the entities Bike, Customer, Repair Bike, Payment are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Bike Showroom Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Bike Showroom Management System Sequence Diagram
This is the UML sequence diagram of Bike Showroom Management System which shows the interaction between the objects of Insurance, Bike, Customer, Repair Bike, Payment. The instance of class objects involved in this UML Sequence Diagram of Bike Showroom Management System are as follows:
- Insurance Object
- Bike Object
- Customer Object
- Repair Bike Object
- Payment Object
Login Sequence Diagram of Bike Showroom Management System:
This is the Login Sequence Diagram of Bike Showroom Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Customer, Insurance, Bike, Payment, Repair Bike. All the pages such as Bike, Payment, Repair Bike are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Bike Showroom Management System. The various objects in the Payment, Customer, Insurance, Bike, and Repair Bike page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Bike Showroom Management System which shows the interaction between the objects of Insurance, Bike, Customer, Repair Bike, Payment. The instance of class objects involved in this UML Sequence Diagram of Bike Showroom Management System are as follows:
- Insurance Object
- Bike Object
- Customer Object
- Repair Bike Object
- Payment Object
- Posted By: freeproject
- Comments: 0
Bike Showroom Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Bike Showroom Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Bike Showroom Management System. The main actors of Bike Showroom Management System in this Use Case Diagram are: Super Admin, System User, Cashiers, Customers, who perform the different type of use cases such as Manage Bike, Manage Booking, Manage Bike Inventory, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Branches center, Manage Users and Full Bike Showroom Management System Operations. Major elements of the UML use case diagram of Bike Showroom Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Bike Showroom Management System:
- Super Admin Entity : Use cases of Super Admin are Manage Bike, Manage Booking, Manage Bike Inventory, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Branches center, Manage Users and Full Bike Showroom Management System Operations
- System User Entity : Use cases of System User are Manage Bike, Manage Booking, Manage Bike Inventory, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Branches center
- Cashiers Entity : Use cases of Cashiers are Manage Purchase, Manage Customers, Manage Payments
- Customers Entity : Use cases of Customers are New Bike Request, Make Payment, View Request Status
Use Case Diagram of Bike Showroom Management System :
