Resume Builder System Activity Diagram
This is the Activity UML diagram of Resume Builder System which shows the flows between the activity of Skills, Question, Salary, User, Job. The main activity involved in this UML Activity Diagram of Resume Builder System are as follows:
- Skills Activity
- Question Activity
- Salary Activity
- User Activity
- Job Activity
Features of the Activity UML diagram of Resume Builder System
- Admin User can search Skills, view description of a selected Skills, add Skills, update Skills and delete Skills.
- Its shows the activity flow of editing, adding and updating of Question
- User will be able to search and generate report of Salary, User, Job
- All objects such as ( Skills, Question, Job) are interlinked
- Its shows the full description and flow of Skills, User, Job, Salary, Question
Login Activity Diagram of Resume Builder System:
This is the Login Activity Diagram of Resume Builder System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Salary, Skills, Question, Job, User. All the pages such as Question, Job, User are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Resume Builder System. The various objects in the Job, Salary, Skills, Question, and User page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Resume Builder Class Diagram
Resume Builder Class Diagram describes the structure of a Resume Builder classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Resume Builder are Resume, Skills, Job, Question, Jobseeker, Salary.
Classes of Resume Builder Class Diagram:
- Resume Class : Manage all the operations of Resume
- Skills Class : Manage all the operations of Skills
- Job Class : Manage all the operations of Job
- Question Class : Manage all the operations of Question
- Jobseeker Class : Manage all the operations of Jobseeker
- Salary Class : Manage all the operations of Salary
Classes and their attributes of Resume Builder Class Diagram:
- Resume Attributes : resume_id, resume_user_id, resume_name, resume_type, resume_description
- Skills Attributes : skill_id, skill_user_id, skill_name, skill_type, skill_description
- Job Attributes : job_id, job_name, job_type, job_salary, job_vacancy, job_description
- Question Attributes : question_id, question_title, question_type, question_description
- Jobseeker Attributes : job_seeker__id, job_seeker__name, job_seeker__mobile, job_seeker__email, job_seeker__username, job_seeker__password, job_seeker__address
- Salary Attributes : salary_id, salary_employee_id, salary_amount, salary_total, salary_type, salary_description
Classes and their methods of Resume Builder Class Diagram:
- Resume Methods : addResume(), editResume(), deleteResume(), updateResume(), saveResume(), searchResume()
- Skills Methods : addSkills(), editSkills(), deleteSkills(), updateSkills(), saveSkills(), searchSkills()
- Job Methods : addJob(), editJob(), deleteJob(), updateJob(), saveJob(), searchJob()
- Question Methods : addQuestion(), editQuestion(), deleteQuestion(), updateQuestion(), saveQuestion(), searchQuestion()
- Jobseeker Methods : addJobseeker(), editJobseeker(), deleteJobseeker(), updateJobseeker(), saveJobseeker(), searchJobseeker()
- Salary Methods : addSalary(), editSalary(), deleteSalary(), updateSalary(), saveSalary(), searchSalary()
Class Diagram of Resume Builder :
- Posted By: freeproject
- Comments: 0
Resume Builder System Component Diagram
This is a Component diagram of Resume Builder System which shows components, provided and required interfaces, ports, and relationships between the User, Question, Jobseeker, Skills and Resume. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Resume Builder System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Resume Builder System:
- User Component
- Question Component
- Jobseeker Component
- Skills Component
- Resume Component
Featues of Resume Builder System Component Diagram:
- You can show the models the components of Resume Builder System.
- Model the database schema of Resume Builder System
- Model the executables of an application of Resume Builder System
- Model the system's source code of Resume Builder System
- Posted By: freeproject
- Comments: 0
Online Resume Builder Dataflow Diagram
Online Resume Builder Data flow diagram is often used as a preliminary step to create an overview of the Resume Builder without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Resume Builder process. It contains all of the userflow and their entities such all the flow of Resume, Skills, Job, Question, Jobseeker, Salary, User. All of the below diagrams has been used for the visualization of data processing and structured design of the Resume Builder process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Online Resume Builder :
This is the Zero Level DFD of Online Resume Builder, where we have eloborated the high level process of Resume Builder. It’s a basic overview of the whole Online Resume Builder or process being analyzed or modeled. It’s designed to be an at-a-glance view of Jobseeker,Salary and User showing the system as a single high-level process, with its relationship to external entities of Resume,Skills and Job. It should be easily understood by a wide audience, including Resume,Job and Jobseeker In zero leve DFD of Online Resume Builder, we have described the high level flow of the Resume Builder system.High Level Entities and proccess flow of Online Resume Builder:
- Managing all the Resume
- Managing all the Skills
- Managing all the Job
- Managing all the Question
- Managing all the Jobseeker
- Managing all the Salary
- Managing all the User
First Level Data flow Diagram(1st Level DFD) of Online Resume Builder :
First Level DFD (1st Level) of Online Resume Builder shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Online Resume Builder system as a whole. It also identifies internal data stores of User, Salary, Jobseeker, Question, Job that must be present in order for the Resume Builder system to do its job, and shows the flow of data between the various parts of Resume, Job, Salary, User, Jobseeker of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Resume Builder.Main entities and output of First Level DFD (1st Level DFD):
- Processing Resume records and generate report of all Resume
- Processing Skills records and generate report of all Skills
- Processing Job records and generate report of all Job
- Processing Question records and generate report of all Question
- Processing Jobseeker records and generate report of all Jobseeker
- Processing Salary records and generate report of all Salary
- Processing User records and generate report of all User
Second Level Data flow Diagram(2nd Level DFD) of Online Resume Builder :
DFD Level 2 then goes one step deeper into parts of Level 1 of Resume Builder. It may require more functionalities of Resume Builder to reach the necessary level of detail about the Resume Builder functioning. First Level DFD (1st Level) of Online Resume Builder shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of User, Salary, Jobseeker, Question, Job, Skills, Resume.Low level functionalities of Online Resume Builder
- Admin logins to the system and manage all the functionalities of Online Resume Builder
- Admin can add, edit, delete and view the records of Resume, Job, Jobseeker, User
- Admin can manage all the details of Skills, Question, Salary
- Admin can also generate reports of Resume, Skills, Job, Question, Jobseeker, Salary
- Admin can search the details of Skills, Jobseeker, Salary
- Admin can apply different level of filters on report of Resume, Question, Jobseeker
- Admin can tracks the detailed information of Skills, Job, Question, , Jobseeker
- Posted By: freeproject
- Comments: 0
Resume Builder ER Diagram
This ER (Entity Relationship) Diagram represents the model of Resume Builder Entity. The entity-relationship diagram of Resume Builder shows all the visual instrument of database tables and the relations between Skills, Question, Resume, Salary etc. It used structure data and to define the relationships between structured data groups of Resume Builder functionalities. The main entities of the Resume Builder are Resume, Skills, Job, Question, Jobseeker and Salary.
Resume Builder entities and their attributes :
- Resume Entity : Attributes of Resume are resume_id, resume_user_id, resume_name, resume_type, resume_description
- Skills Entity : Attributes of Skills are skill_id, skill_user_id, skill_name, skill_type, skill_description
- Job Entity : Attributes of Job are job_id, job_name, job_type, job_salary, job_vacancy, job_description
- Question Entity : Attributes of Question are question_id, question_title, question_type, question_description
- Jobseeker Entity : Attributes of Jobseeker are job_seeker__id, job_seeker__name, job_seeker__mobile, job_seeker__email, job_seeker__username, job_seeker__password, job_seeker__address
- Salary Entity : Attributes of Salary are salary_id, salary_employee_id, salary_amount, salary_total, salary_type, salary_description
Description of Resume Builder Database :
- The details of Resume is store into the Resume tables respective with all tables
- Each entity ( Salary, Job, Jobseeker, Skills, Resume) contains primary key and unique keys.
- The entity Job, Jobseeker has binded with Resume, Skills entities with foreign key
- There is one-to-one and one-to-many relationships available between Jobseeker, Question, Salary, Resume
- All the entities Resume, Jobseeker, Job, Salary are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Resume Builder tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Resume Builder System Sequence Diagram
This is the UML sequence diagram of Resume Builder System which shows the interaction between the objects of Salary, Jobseeker, Resume, Question, Skills. The instance of class objects involved in this UML Sequence Diagram of Resume Builder System are as follows:
- Salary Object
- Jobseeker Object
- Resume Object
- Question Object
- Skills Object
Login Sequence Diagram of Resume Builder System:
This is the Login Sequence Diagram of Resume Builder System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Resume, Salary, Jobseeker, Skills, Question. All the pages such as Jobseeker, Skills, Question are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Resume Builder System. The various objects in the Skills, Resume, Salary, Jobseeker, and Question page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Resume Builder System which shows the interaction between the objects of Salary, Jobseeker, Resume, Question, Skills. The instance of class objects involved in this UML Sequence Diagram of Resume Builder System are as follows:
- Salary Object
- Jobseeker Object
- Resume Object
- Question Object
- Skills Object
- Posted By: freeproject
- Comments: 0

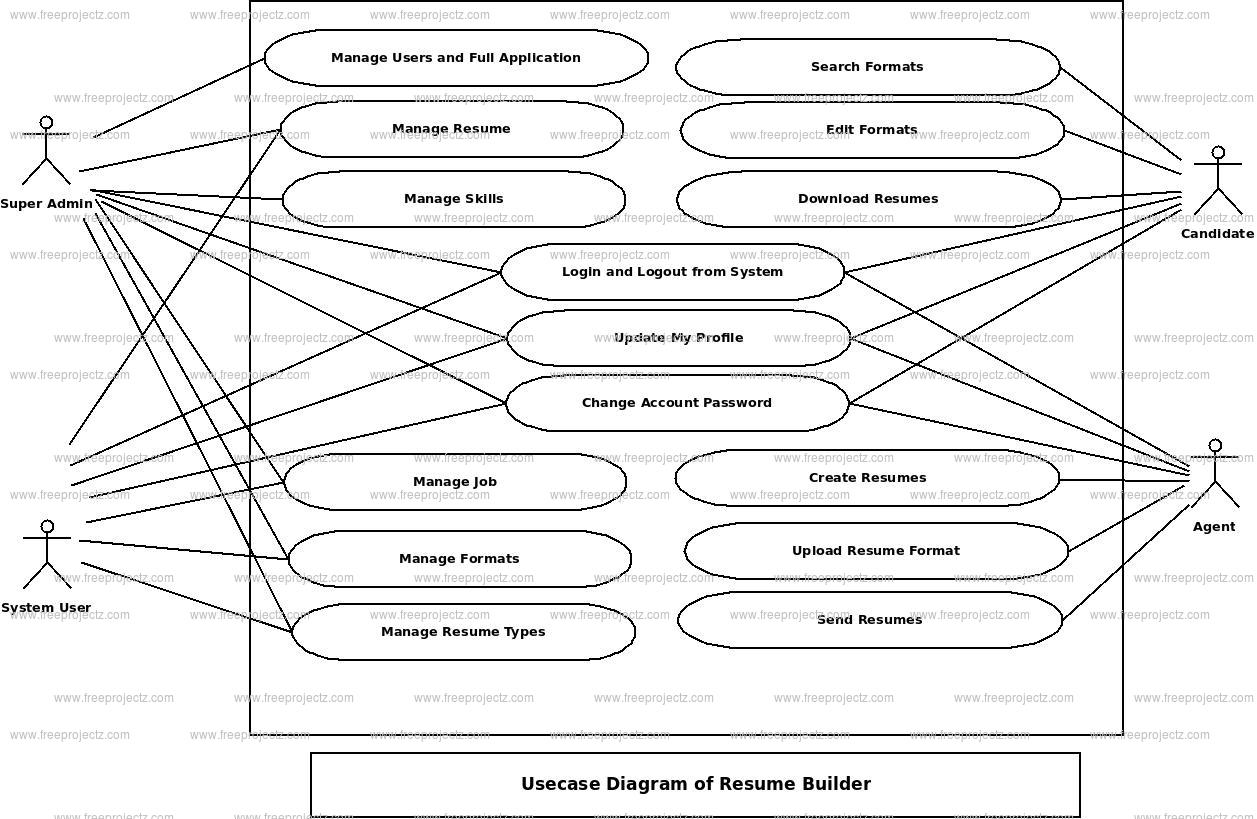

Resume Builder Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Resume Builder. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Resume Builder. The main actors of Resume Builder in this Use Case Diagram are: Super Admin, System User, Agent, Candidate, who perform the different type of use cases such as Manage Resume, Manage Skills, Manage Job, Manage Formats, Manage Resume Types, Manage Users and Full Resume Builder Operations. Major elements of the UML use case diagram of Resume Builder are shown on the picture below.
The relationships between and among the actors and the use cases of Resume Builder:
- Super Admin Entity : Use cases of Super Admin are Manage Resume, Manage Skills, Manage Job, Manage Formats, Manage Resume Types, Manage Users and Full Resume Builder Operations
- System User Entity : Use cases of System User are Manage Resume, Manage Skills, Manage Job, Manage Formats, Manage Resume Types
- Agent Entity : Use cases of Agent are Upload Resume Format, Create Resumes, Send Resumes
- Candidate Entity : Use cases of Candidate are Search Formats, Edit Formats, Download Resumes
Use Case Diagram of Resume Builder :
