Travel Agency Management System Activity Diagram

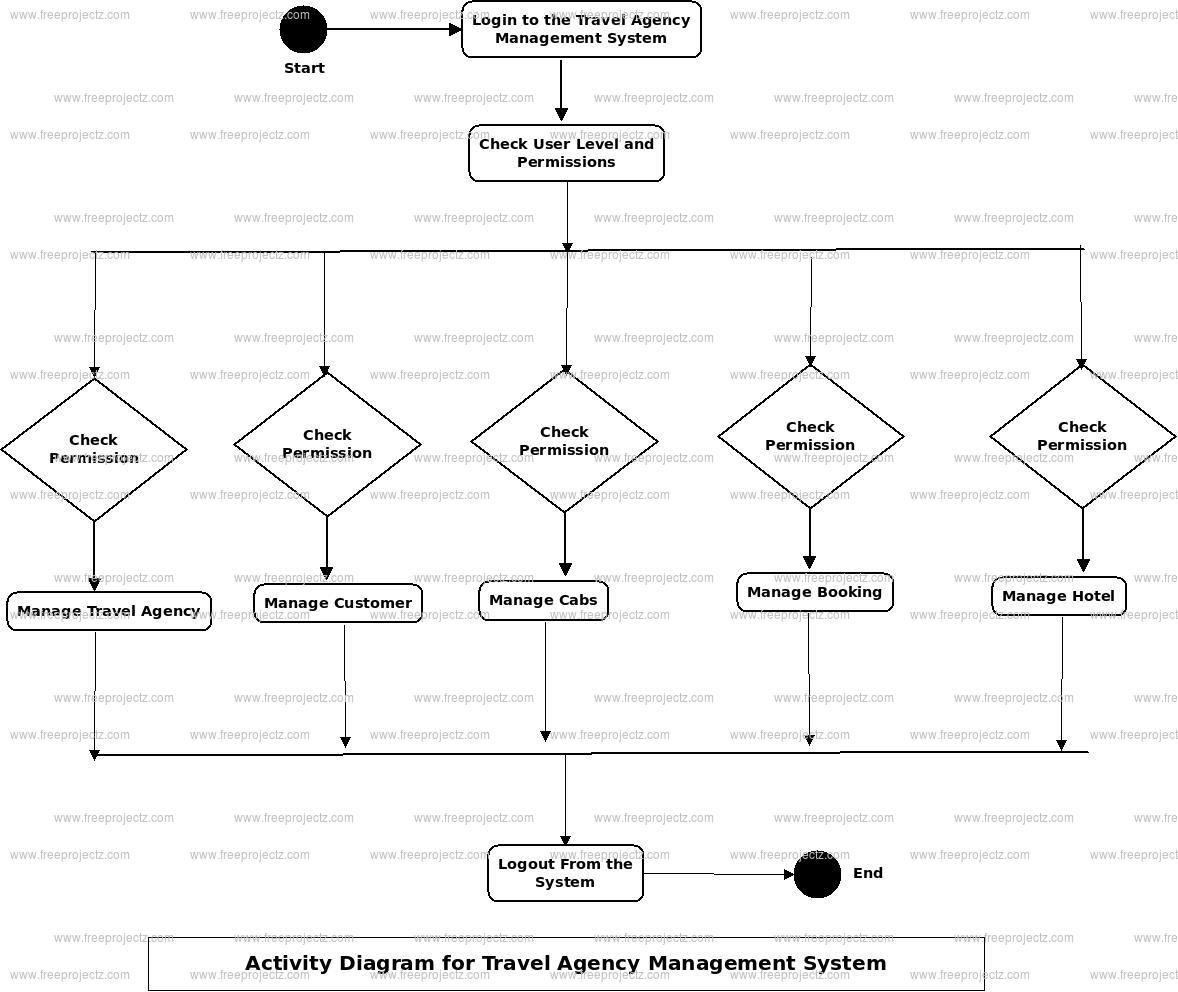

This is the Activity UML diagram of Travel Agency Management System which shows the flows between the activity of Hotel, Paymens, Travel Agency, Customer, Booking. The main activity involved in this UML Activity Diagram of Travel Agency Management System are as follows:
- Hotel Activity
- Paymens Activity
- Travel Agency Activity
- Customer Activity
- Booking Activity
Features of the Activity UML diagram of Travel Agency Management System
- Admin User can search Hotel, view description of a selected Hotel, add Hotel, update Hotel and delete Hotel.
- Its shows the activity flow of editing, adding and updating of Paymens
- User will be able to search and generate report of Travel Agency, Customer, Booking
- All objects such as ( Hotel, Paymens, Booking) are interlinked
- Its shows the full description and flow of Hotel, Customer, Booking, Travel Agency, Paymens
Login Activity Diagram of Travel Agency Management System:
This is the Login Activity Diagram of Travel Agency Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Travel Agency, Hotel, Paymens, Booking, Customer. All the pages such as Paymens, Booking, Customer are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Travel Agency Management System. The various objects in the Booking, Travel Agency, Hotel, Paymens, and Customer page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Travel Agency Management System Class Diagram
Travel Agency Management System Class Diagram describes the structure of a Travel Agency Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Travel Agency Management System are Travel Agency, Customer, Cabs, Bookings, Hotels, Payments.
Classes of Travel Agency Management System Class Diagram:
- Travel Agency Class : Manage all the operations of Travel Agency
- Customer Class : Manage all the operations of Customer
- Cabs Class : Manage all the operations of Cabs
- Bookings Class : Manage all the operations of Bookings
- Hotels Class : Manage all the operations of Hotels
- Payments Class : Manage all the operations of Payments
Classes and their attributes of Travel Agency Management System Class Diagram:
- Travel Agency Attributes : agency_id, agency_name, comapny_type, agency_description, agency_address
- Customer Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Cabs Attributes : cab_id, cab_name, cab_type, cab_description
- Bookings Attributes : booking_id, booking_hotel_id, booking_title, booking_type, booking_date, booking_description
- Hotels Attributes : hotel_id, hotel_name, hotel_type, hotel_rent, hotel_description, hotel_address
- Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
Classes and their methods of Travel Agency Management System Class Diagram:
- Travel Agency Methods : addTravel Agency(), editTravel Agency(), deleteTravel Agency(), updateTravel Agency(), saveTravel Agency(), searchTravel Agency()
- Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
- Cabs Methods : addCabs(), editCabs(), deleteCabs(), updateCabs(), saveCabs(), searchCabs()
- Bookings Methods : addBookings(), editBookings(), deleteBookings(), updateBookings(), saveBookings(), searchBookings()
- Hotels Methods : addHotels(), editHotels(), deleteHotels(), updateHotels(), saveHotels(), searchHotels()
- Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()
Class Diagram of Travel Agency Management System :
- Posted By: freeproject
- Comments: 0
Travel Agency Management System Component Diagram
This is a Component diagram of Travel Agency Management System which shows components, provided and required interfaces, ports, and relationships between the Booking, Paymens, Hotel, Travel Agency and Cabs. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Travel Agency Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Travel Agency Management System:
- Booking Component
- Paymens Component
- Hotel Component
- Travel Agency Component
- Cabs Component
Featues of Travel Agency Management System Component Diagram:
- You can show the models the components of Travel Agency Management System.
- Model the database schema of Travel Agency Management System
- Model the executables of an application of Travel Agency Management System
- Model the system's source code of Travel Agency Management System
- Posted By: namita
- Comments: 0
Travel Agency Management System Dataflow Diagram
Travel Agency Management System Data flow diagram is often used as a preliminary step to create an overview of the Travel Agency without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Travel Agency process. It contains all of the userflow and their entities such all the flow of Travel Agency, Customer, Cabs, Bookings, Charges, Payment, Login. All of the below diagrams has been used for the visualization of data processing and structured design of the Travel Agency process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Travel Agency Management System :
This is the Zero Level DFD of Travel Agency Management System, where we have eloborated the high level process of Travel Agency. It’s a basic overview of the whole Travel Agency Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Charges,Payment and Login showing the system as a single high-level process, with its relationship to external entities of Travel Agency,Customer and Cabs. It should be easily understood by a wide audience, including Travel Agency,Cabs and Charges In zero leve DFD of Travel Agency Management System, we have described the high level flow of the Travel Agency system.High Level Entities and proccess flow of Travel Agency Management System:
- Managing all the Travel Agency
- Managing all the Customer
- Managing all the Cabs
- Managing all the Bookings
- Managing all the Charges
- Managing all the Payment
- Managing all the Login
First Level Data flow Diagram(1st Level DFD) of Travel Agency Management System :
First Level DFD (1st Level) of Travel Agency Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Travel Agency Management System system as a whole. It also identifies internal data stores of Login, Payment, Charges, Bookings, Cabs that must be present in order for the Travel Agency system to do its job, and shows the flow of data between the various parts of Travel Agency, Cabs, Payment, Login, Charges of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Travel Agency.Main entities and output of First Level DFD (1st Level DFD):
- Processing Travel Agency records and generate report of all Travel Agency
- Processing Customer records and generate report of all Customer
- Processing Cabs records and generate report of all Cabs
- Processing Bookings records and generate report of all Bookings
- Processing Charges records and generate report of all Charges
- Processing Payment records and generate report of all Payment
- Processing Login records and generate report of all Login
Second Level Data flow Diagram(2nd Level DFD) of Travel Agency Management System :
DFD Level 2 then goes one step deeper into parts of Level 1 of Travel Agency. It may require more functionalities of Travel Agency to reach the necessary level of detail about the Travel Agency functioning. First Level DFD (1st Level) of Travel Agency Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Login, Payment, Charges, Bookings, Cabs, Customer, Travel Agency.Low level functionalities of Travel Agency Management System
- Admin logins to the system and manage all the functionalities of Travel Agency Management System
- Admin can add, edit, delete and view the records of Travel Agency, Cabs, Charges, Login
- Admin can manage all the details of Customer, Bookings, Payment
- Admin can also generate reports of Travel Agency, Customer, Cabs, Bookings, Charges, Payment
- Admin can search the details of Customer, Charges, Payment
- Admin can apply different level of filters on report of Travel Agency, Bookings, Charges
- Admin can tracks the detailed information of Customer, Cabs, Bookings, , Charges
- Posted By: freeproject
- Comments: 0
Travel Agency Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Travel Agency Management System Entity. The entity-relationship diagram of Travel Agency Management System shows all the visual instrument of database tables and the relations between Customer, Bookings, Travel Agency, Payments etc. It used structure data and to define the relationships between structured data groups of Travel Agency Management System functionalities. The main entities of the Travel Agency Management System are Travel Agency, Customer, Cabs, Bookings, Hotels and Payments.
Travel Agency Management System entities and their attributes :
- Travel Agency Entity : Attributes of Travel Agency are agency_id, agency_name, comapny_type, agency_description, agency_address
- Customer Entity : Attributes of Customer are customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Cabs Entity : Attributes of Cabs are cab_id, cab_name, cab_type, cab_description
- Bookings Entity : Attributes of Bookings are booking_id, booking_hotel_id, booking_title, booking_type, booking_date, booking_description
- Hotels Entity : Attributes of Hotels are hotel_id, hotel_name, hotel_type, hotel_rent, hotel_description, hotel_address
- Payments Entity : Attributes of Payments are payment_id, payment_customer_id, payment_date, payment_amount, payment_description
Description of Travel Agency Management System Database :
- The details of Travel Agency is store into the Travel Agency tables respective with all tables
- Each entity ( Payments, Cabs, Hotels, Customer, Travel Agency) contains primary key and unique keys.
- The entity Cabs, Hotels has binded with Travel Agency, Customer entities with foreign key
- There is one-to-one and one-to-many relationships available between Hotels, Bookings, Payments, Travel Agency
- All the entities Travel Agency, Hotels, Cabs, Payments are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Travel Agency Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Travel Agency Management System Sequence Diagram
This is the UML sequence diagram of Travel Agency Management System which shows the interaction between the objects of Cabs, Booking, Paymens, Travel Agency, Customer. The instance of class objects involved in this UML Sequence Diagram of Travel Agency Management System are as follows:
- Cabs Object
- Booking Object
- Paymens Object
- Travel Agency Object
- Customer Object
Login Sequence Diagram of Travel Agency Management System:
This is the Login Sequence Diagram of Travel Agency Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Paymens, Cabs, Booking, Customer, Travel Agency. All the pages such as Booking, Customer, Travel Agency are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Travel Agency Management System. The various objects in the Customer, Paymens, Cabs, Booking, and Travel Agency page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Travel Agency Management System which shows the interaction between the objects of Cabs, Booking, Paymens, Travel Agency, Customer. The instance of class objects involved in this UML Sequence Diagram of Travel Agency Management System are as follows:
- Cabs Object
- Booking Object
- Paymens Object
- Travel Agency Object
- Customer Object
- Posted By: freeproject
- Comments: 0
Travel Agency Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Travel Agency Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Travel Agency Management System. The main actors of Travel Agency Management System in this Use Case Diagram are: Super Admin, System User, Agent, Customer, who perform the different type of use cases such as Travel Agency, Manage Customer, Manage Cabs, Manage Bookings, Manage Hotels, Manage Payments, Manage Users and Full Travel Agency Management System Operations. Major elements of the UML use case diagram of Travel Agency Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Travel Agency Management System:
- Super Admin Entity : Use cases of Super Admin are Travel Agency, Manage Customer, Manage Cabs, Manage Bookings, Manage Hotels, Manage Payments, Manage Users and Full Travel Agency Management System Operations
- System User Entity : Use cases of System User are Travel Agency, Manage Customer, Manage Cabs, Manage Bookings, Manage Hotels, Manage Payments
- Agent Entity : Use cases of Agent are Create Quoations, Send Quotations, Create Invoice, Collect Payment
- Customer Entity : Use cases of Customer are Request for Quote, Download Quote, Make Payment
Use Case Diagram of Travel Agency Management System :
