Vehicle Insurance Management System Activity Diagram
This is the Activity UML diagram of Vehicle Insurance Management System which shows the flows between the activity of Vehicle, Payment, Registrations, Payments, Customer. The main activity involved in this UML Activity Diagram of Vehicle Insurance Management System are as follows:
- Vehicle Activity
- Payment Activity
- Registrations Activity
- Payments Activity
- Customer Activity
Features of the Activity UML diagram of Vehicle Insurance Management System
- Admin User can search Vehicle, view description of a selected Vehicle, add Vehicle, update Vehicle and delete Vehicle.
- Its shows the activity flow of editing, adding and updating of Payment
- User will be able to search and generate report of Registrations, Payments, Customer
- All objects such as (Vehicle, Payment, Customer) are interlinked
- Its shows the full description and flow of Vehicle, Payments, Customer, Registrations, Payment
Login Activity Diagram of Vehicle Insurance Management System:
This is the Login Activity Diagram of Vehicle Insurance Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Registrations, Vehicle, Payment, Customer, Payments. All the pages such as Payment, Customer, Payments are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Vehicle Insurance Management System. The various objects in the Customer, Registrations, Vehicle, Payment, and Payments page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System Class Diagram
Vehicle Insurance Management System Class Diagram describes the structure of a Vehicle Insurance Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Vehicle Insurance Management System are Vehicle, Insurance, Customers, Payments, Registrations, License.
Classes of Vehicle Insurance Management System Class Diagram:
- Vehicle Class : Manage all the operations of Vehicle
- Insurance Class : Manage all the operations of Insurance
- Customers Class : Manage all the operations of Customers
- Payments Class : Manage all the operations of Payments
- Registrations Class : Manage all the operations of Registrations
- License Class : Manage all the operations of License
Classes and their attributes of Vehicle Insurance Management System Class Diagram:
- Vehicle Attributes : vehicle_id, vehicle_customer_id, vehicle_number, vehicle_type, vehicle_description
- Insurance Attributes : insurance_id, insurance_vehicle_id, insurance_number, insurance_issue_date, insurance_premium, insurance_amount, insurance_type, insurance_description
- Customers Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
- Registrations Attributes : registration_id, registration_vehicle_id, registration_customer_id, registration_name, registration_type, registration_number, registration_date, registration_description
- License Attributes : license_id, license_name, license_type, license_description
Classes and their methods of Vehicle Insurance Management System Class Diagram:
- Vehicle Methods : addVehicle(), editVehicle(), deleteVehicle(), updateVehicle(), saveVehicle(), searchVehicle()
- Insurance Methods : addInsurance(), editInsurance(), deleteInsurance(), updateInsurance(), saveInsurance(), searchInsurance()
- Customers Methods : addCustomers(), editCustomers(), deleteCustomers(), updateCustomers(), saveCustomers(), searchCustomers()
- Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()
- Registrations Methods : addRegistrations(), editRegistrations(), deleteRegistrations(), updateRegistrations(), saveRegistrations(), searchRegistrations()
- License Methods : addLicense(), editLicense(), deleteLicense(), updateLicense(), saveLicense(), searchLicense()
Class Diagram of Vehicle Insurance Management System :
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System Component Diagram
This is a Component diagram of Vehicle Insurance Management System which shows components, provided and required interfaces, ports, and relationships between the Insurance, Customer, Registrations, Payments and Payment. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Vehicle Insurance Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Vehicle Insurance Management System:
- Insurance Component
- Customer Component
- Registrations Component
- Payments Component
- Payment Component
Featues of Vehicle Insurance Management System Component Diagram:
- You can show the models the components of Vehicle Insurance Management System.
- Model the database schema of Vehicle Insurance Management System
- Model the executables of an application of Vehicle Insurance Management System
- Model the system's source code of Vehicle Insurance Management System
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System Dataflow Diagram
Vehicle Insurance Management System Data flow diagram is often used as a preliminary step to create an overview of the Vehicle Insurance without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Vehicle Insurance process. It contains all of the userflow and their entities such all the flow of Vehicle, Vehicle Type, Vehicle Maker, Insurance, Customer, Payment, . All of the below diagrams has been used for the visualization of data processing and structured design of the Vehicle Insurance process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Vehicle Insurance Management System :
This is the Zero Level DFD of Vehicle Insurance Management System, where we have eloborated the high level process of Vehicle Insurance. It’s a basic overview of the whole Vehicle Insurance Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Customer,Payment and showing the system as a single high-level process, with its relationship to external entities of Vehicle,Vehicle Type and Vehicle Maker. It should be easily understood by a wide audience, including Vehicle,Vehicle Maker and Customer In zero leve DFD of Vehicle Insurance Management System, we have described the high level flow of the Vehicle Insurance system.High Level Entities and proccess flow of Vehicle Insurance Management System:
- Managing all the Vehicle
- Managing all the Vehicle Type
- Managing all the Vehicle Maker
- Managing all the Insurance
- Managing all the Customer
- Managing all the Payment
- Managing all the Registration
First Level Data flow Diagram(1st Level DFD) of Vehicle Insurance Management System :
First Level DFD (1st Level) of Vehicle Insurance Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Vehicle Insurance Management System system as a whole. It also identifies internal data stores of , Payment, Customer, Insurance, Vehicle Maker that must be present in order for the Vehicle Insurance system to do its job, and shows the flow of data between the various parts of Vehicle, Vehicle Maker, Payment, , Customer of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Vehicle Insurance.Main entities and output of First Level DFD (1st Level DFD):
- Processing Vehicle records and generate report of all Vehicle
- Processing Vehicle Type records and generate report of all Vehicle Type
- Processing Vehicle Maker records and generate report of all Vehicle Maker
- Processing Insurance records and generate report of all Insurance
- Processing Customer records and generate report of all Customer
- Processing Payment records and generate report of all Payment
- Processing records and generate report of all
Second Level Data flow Diagram(2nd Level DFD) of Vehicle Insurance Management System :
DFD Level 2 then goes one step deeper into parts of Level 1 of Vehicle Insurance. It may require more functionalities of Vehicle Insurance to reach the necessary level of detail about the Vehicle Insurance functioning. First Level DFD (1st Level) of Vehicle Insurance Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of , Payment, Customer, Insurance, Vehicle Maker, Vehicle Type, Vehicle.Low level functionalities of Vehicle Insurance Management System
- Admin logins to the system and manage all the functionalities of Vehicle Insurance Management System
- Admin can add, edit, delete and view the records of Vehicle, Vehicle Maker, Customer,
- Admin can manage all the details of Vehicle Type, Insurance, Payment
- Admin can also generate reports of Vehicle, Vehicle Type, Vehicle Maker, Insurance, Customer, Payment
- Admin can search the details of Vehicle Type, Customer, Payment
- Admin can apply different level of filters on report of Vehicle, Insurance, Customer
- Admin can tracks the detailed information of Vehicle Type, Vehicle Maker, Insurance, , Customer
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Vehicle Insurance Management System Entity. The entity-relationship diagram of Vehicle Insurance Management System shows all the visual instrument of database tables and the relations between Insurance, Payments, Vehicle, License etc. It used structure data and to define the relationships between structured data groups of Vehicle Insurance Management System functionalities. The main entities of the Vehicle Insurance Management System are Vehicle, Insurance, Customers, Payments, Registrations and License.
Vehicle Insurance Management System entities and their attributes :
- Vehicle Entity : Attributes of Vehicle are vehicle_id, vehicle_customer_id, vehicle_number, vehicle_type, vehicle_description
- Insurance Entity : Attributes of Insurance are insurance_id, insurance_vehicle_id, insurance_number, insurance_issue_date, insurance_premium, insurance_amount, insurance_type, insurance_description
- Customers Entity : Attributes of Customers are customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Payments Entity : Attributes of Payments are payment_id, payment_customer_id, payment_date, payment_amount, payment_description
- Registrations Entity : Attributes of Registrations are registration_id, registration_vehicle_id, registration_customer_id, registration_name, registration_type, registration_number, registration_date, registration_description
- License Entity : Attributes of License are license_id, license_name, license_type, license_description
Description of Vehicle Insurance Management System Database :
- The details of Vehicle is store into the Vehicle tables respective with all tables
- Each entity (License, Customers, Registrations, Insurance, Vehicle) contains primary key and unique keys.
- The entity Customers, Registrations has binded with Vehicle, Insurance entities with foreign key
- There is one-to-one and one-to-many relationships available between Registrations, Payments, License, Vehicle
- All the entities Vehicle, Registrations, Customers, License are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Vehicle Insurance Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System Sequence Diagram
This is the UML sequence diagram of Vehicle Insurance Management System which shows the interaction between the objects of Registrations, Payment, Insurance, Customer, Vehicle. The instance of class objects involved in this UML Sequence Diagram of Vehicle Insurance Management System are as follows:
- Registrations Object
- Payment Object
- Insurance Object
- Customer Object
- Vehicle Object
Login Sequence Diagram of Vehicle Insurance Management System:
This is the Login Sequence Diagram of Vehicle Insurance Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Insurance, Registrations, Payment, Vehicle, Customer. All the pages such as Payment, Vehicle, Customer are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Vehicle Insurance Management System. The various objects in the Vehicle, Insurance, Registrations, Payment, and Customer page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Vehicle Insurance Management System which shows the interaction between the objects of Registrations, Payment, Insurance, Customer, Vehicle. The instance of class objects involved in this UML Sequence Diagram of Vehicle Insurance Management System are as follows:
- Registrations Object
- Payment Object
- Insurance Object
- Customer Object
- Vehicle Object
- Posted By: freeproject
- Comments: 0
Vehicle Insurance Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Vehicle Insurance Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Vehicle Insurance Management System. The main actors of Vehicle Insurance Management System in this Use Case Diagram are: Super Admin, System User, Agent, Customer, who perform the different type of use cases such as Manage Vehicle, Manage Insurance, Manage Customers, Manage Insurance Period, Manage Payments, Manage Registrations, Manage Payment, Manage Users and Full Vehicle Insurance Management System Operations. Major elements of the UML use case diagram of Vehicle Insurance Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Vehicle Insurance Management System:
- Super Admin Entity : Use cases of Super Admin are Manage Vehicle, Manage Insurance, Manage Customers, Manage Insurance Period, Manage Payments, Manage Registrations, Manage Payment, Manage Users and Full Vehicle Insurance Management System Operations
- System User Entity : Use cases of System User are Manage Vehicle, Manage Insurance, Manage Customers, Manage Insurance Period, Manage Payments, Manage Registrations, Manage Payment
- Agent Entity : Use cases of Agent are Upload Policies, Create Quoatations, Make Payment, Manage Customers
- Customer Entity : Use cases of Customer are Search Policies, Buy Policies, Purchase history, Request for Quotation

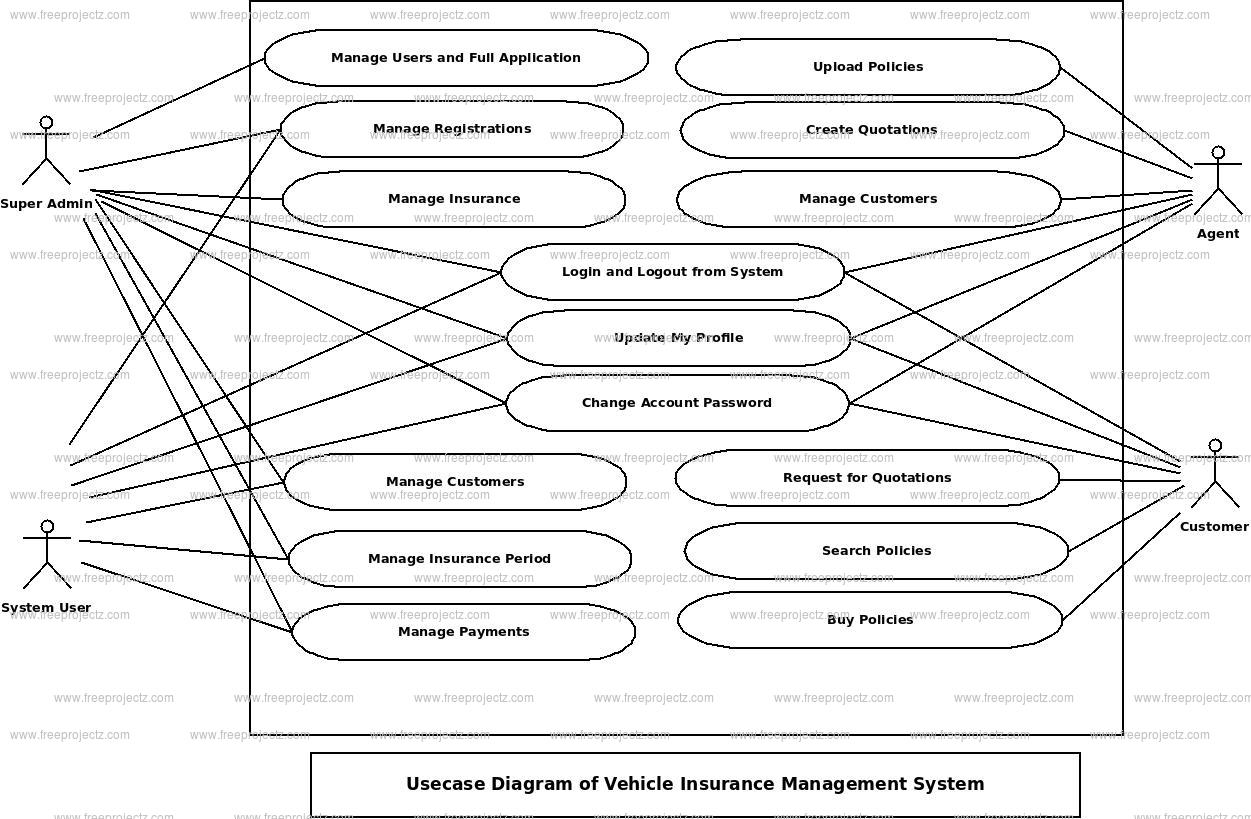

Use Case Diagram of Vehicle Insurance Management System :
