Membership Management System Activity Diagram

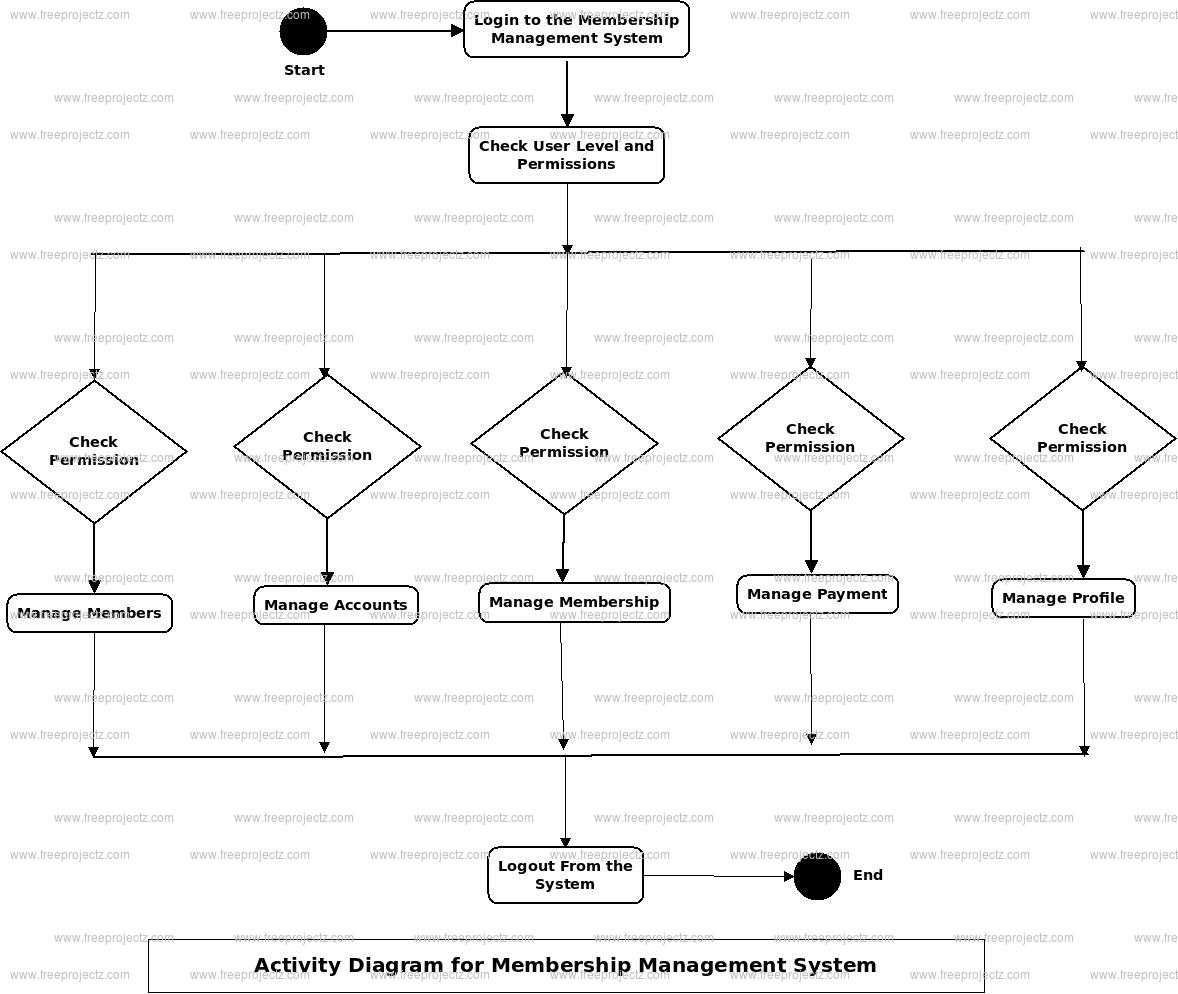

This is the Activity UML diagram of Membership Management System which shows the flows between the activity of Membership, , Profile, Payment, Login. The main activity involved in this UML Activity Diagram of Membership Management System are as follows:
- Membership Activity
- Activity
- Profile Activity
- Payment Activity
- Login Activity
Features of the Activity UML diagram of Membership Management System
- Admin User can search Membership, view description of a selected Membership, add Membership, update Membership and delete Membership.
- Its shows the activity flow of editing, adding and updating of
- User will be able to search and generate report of Profile, Payment, Login
- All objects such as ( Membership, , Login) are interlinked
- Its shows the full description and flow of Membership, Payment, Login, Profile,
Login Activity Diagram of Membership Management System:
This is the Login Activity Diagram of Membership Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Profile, Membership, , Login, Payment. All the pages such as , Login, Payment are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Membership Management System. The various objects in the Login, Profile, Membership, , and Payment page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Membership Management System Class Diagram

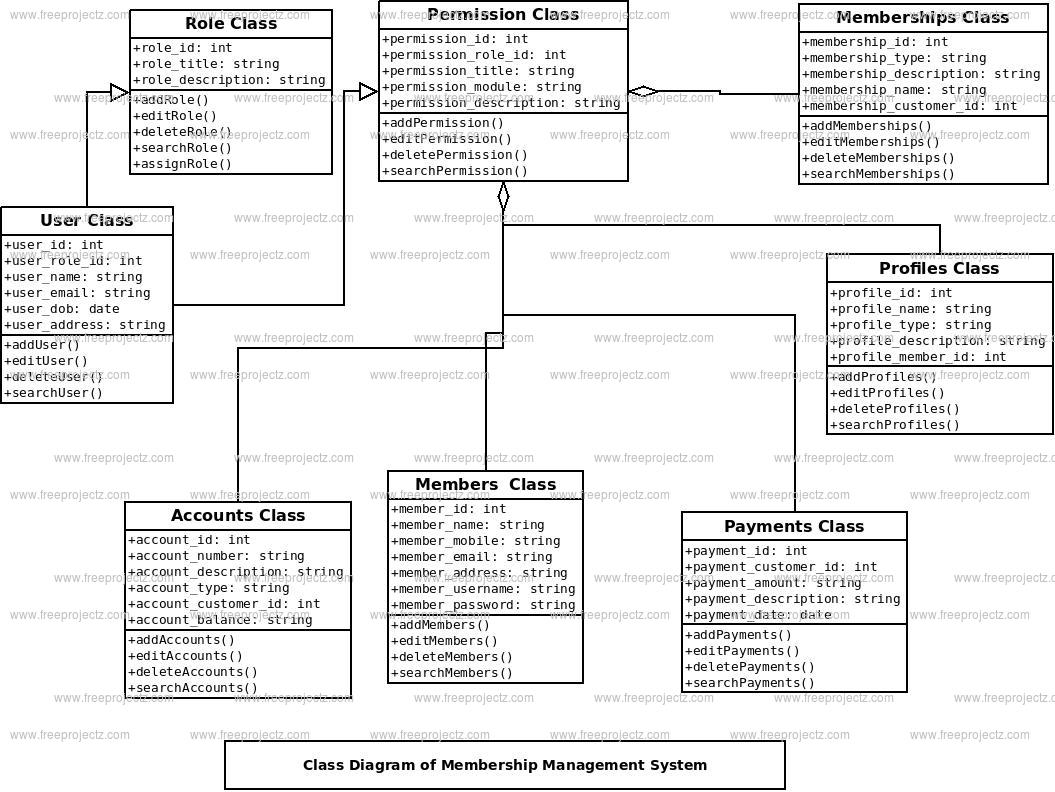

Membership Management System Class Diagram describes the structure of a Membership Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Membership Management System are Members, Login, Accounts, Memberships, Payments, Profiles.
Classes of Membership Management System Class Diagram:
- Members Class : Manage all the operations of Members
- Login Class : Manage all the operations of Login
- Accounts Class : Manage all the operations of Accounts
- Memberships Class : Manage all the operations of Memberships
- Payments Class : Manage all the operations of Payments
- Profiles Class : Manage all the operations of Profiles
Classes and their attributes of Membership Management System Class Diagram:
- Members Attributes : member_id, member_name, member_mobile, member_email, member_username, member_password, member_address
- Login Attributes : login_id, login_user_id, login_role_id, login_username, login_password, login_lastlogin
- Accounts Attributes : account_id, account_customer_id, account_number, account_type, account_balance, account_description
- Memberships Attributes : membership_id, membership_customer_id, membership_name, membership_type, membership_description
- Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
- Profiles Attributes : profile_id, profile_member_id, profile_name, profile_type, profile_description
Classes and their methods of Membership Management System Class Diagram:
- Members Methods : addMembers(), editMembers(), deleteMembers(), updateMembers(), saveMembers(), searchMembers()
- Login Methods : addLogin(), editLogin(), deleteLogin(), updateLogin(), saveLogin(), searchLogin()
- Accounts Methods : addAccounts(), editAccounts(), deleteAccounts(), updateAccounts(), saveAccounts(), searchAccounts()
- Memberships Methods : addMemberships(), editMemberships(), deleteMemberships(), updateMemberships(), saveMemberships(), searchMemberships()
- Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()
- Profiles Methods : addProfiles(), editProfiles(), deleteProfiles(), updateProfiles(), saveProfiles(), searchProfiles()
Class Diagram of Membership Management System :
- Posted By: freeproject
- Comments: 0
Membership Management System Component Diagram
This is a Component diagram of Membership Management System which shows components, provided and required interfaces, ports, and relationships between the Login, Account, Payment, Profile and . This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Membership Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Membership Management System:
- Login Component
- Account Component
- Payment Component
- Profile Component
- Component
Featues of Membership Management System Component Diagram:
- You can show the models the components of Membership Management System.
- Model the database schema of Membership Management System
- Model the executables of an application of Membership Management System
- Model the system's source code of Membership Management System
- Posted By: namita
- Comments: 0
Membership Management System Dataflow Diagram
Membership Management System Data flow diagram is often used as a preliminary step to create an overview of the Membership without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Membership process. It contains all of the userflow and their entities such all the flow of Members, Login, Accounts, Memberships, Payments, Profiles, Authentication. All of the below diagrams has been used for the visualization of data processing and structured design of the Membership process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Membership Management System :

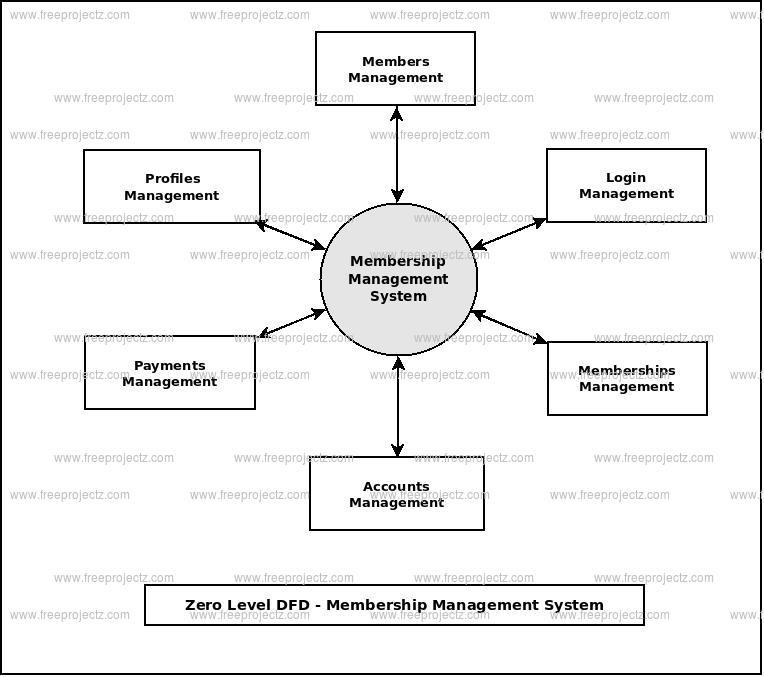

This is the Zero Level DFD of Membership Management System, where we have eloborated the high level process of Membership. It’s a basic overview of the whole Membership Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Payments,Profiles and Authentication showing the system as a single high-level process, with its relationship to external entities of Members,Login and Accounts. It should be easily understood by a wide audience, including Members,Accounts and Payments In zero leve DFD of Membership Management System, we have described the high level flow of the Membership system.High Level Entities and proccess flow of Membership Management System:
- Managing all the Members
- Managing all the Login
- Managing all the Accounts
- Managing all the Memberships
- Managing all the Payments
- Managing all the Profiles
- Managing all the Authentication
First Level Data flow Diagram(1st Level DFD) of Membership Management System :

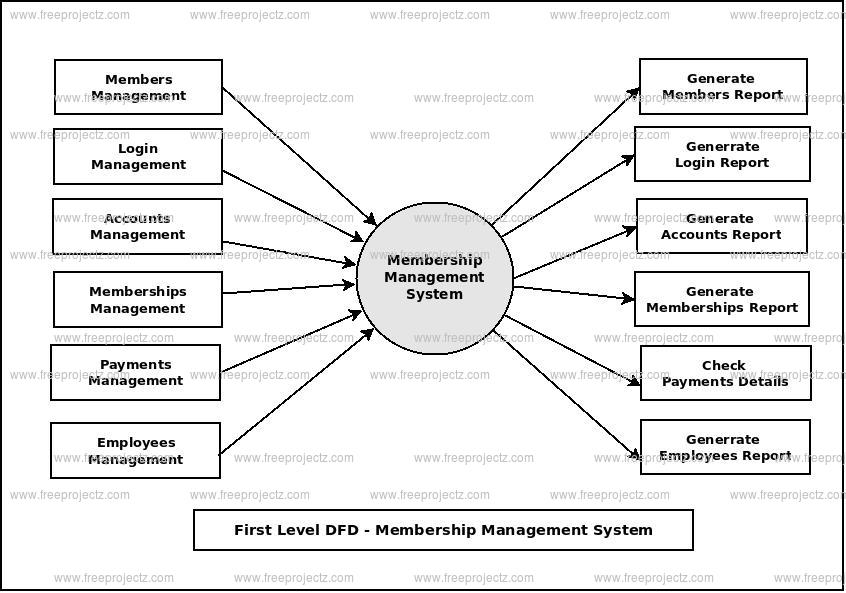

First Level DFD (1st Level) of Membership Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Membership Management System system as a whole. It also identifies internal data stores of Authentication, Profiles, Payments, Memberships, Accounts that must be present in order for the Membership system to do its job, and shows the flow of data between the various parts of Members, Accounts, Profiles, Authentication, Payments of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Membership.Main entities and output of First Level DFD (1st Level DFD):
- Processing Members records and generate report of all Members
- Processing Login records and generate report of all Login
- Processing Accounts records and generate report of all Accounts
- Processing Memberships records and generate report of all Memberships
- Processing Payments records and generate report of all Payments
- Processing Profiles records and generate report of all Profiles
- Processing Authentication records and generate report of all Authentication
Second Level Data flow Diagram(2nd Level DFD) of Membership Management System :

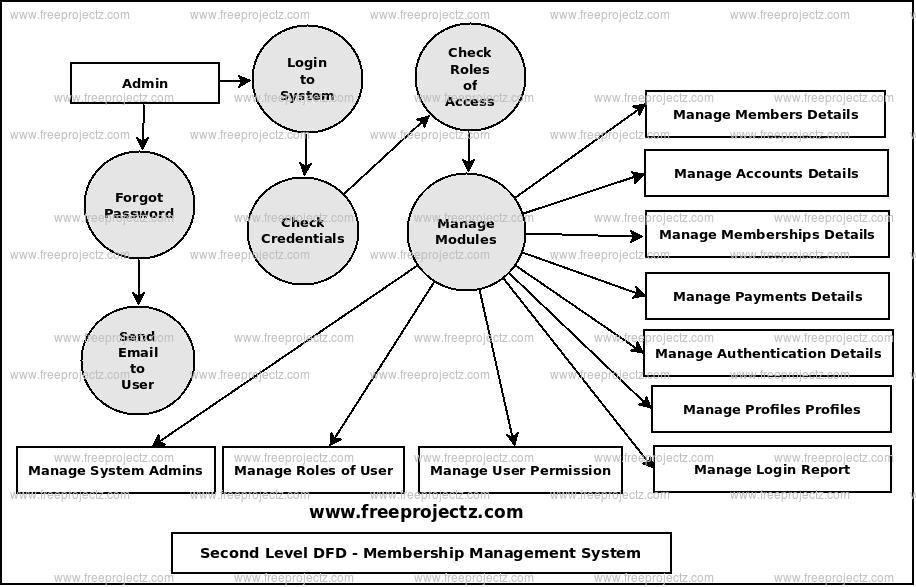

DFD Level 2 then goes one step deeper into parts of Level 1 of Membership. It may require more functionalities of Membership to reach the necessary level of detail about the Membership functioning. First Level DFD (1st Level) of Membership Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Authentication, Profiles, Payments, Memberships, Accounts, Login, Members.Low level functionalities of Membership Management System
- Admin logins to the system and manage all the functionalities of Membership Management System
- Admin can add, edit, delete and view the records of Members, Accounts, Payments, Authentication
- Admin can manage all the details of Login, Memberships, Profiles
- Admin can also generate reports of Members, Login, Accounts, Memberships, Payments, Profiles
- Admin can search the details of Login, Payments, Profiles
- Admin can apply different level of filters on report of Members, Memberships, Payments
- Admin can tracks the detailed information of Login, Accounts, Memberships, , Payments
- Posted By: freeproject
- Comments: 0
Membership Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Membership Management System Entity. The entity-relationship diagram of Membership Management System shows all the visual instrument of database tables and the relations between Login, Memberships, Members, Profiles etc. It used structure data and to define the relationships between structured data groups of Membership Management System functionalities. The main entities of the Membership Management System are Members, Login, Accounts, Memberships, Payments and Profiles.
Membership Management System entities and their attributes :
- Members Entity : Attributes of Members are member_id, member_name, member_mobile, member_email, member_username, member_password, member_address
- Login Entity : Attributes of Login are login_id, login_user_id, login_role_id, login_username, login_password, login_lastlogin
- Accounts Entity : Attributes of Accounts are account_id, account_customer_id, account_number, account_type, account_balance, account_description
- Memberships Entity : Attributes of Memberships are membership_id, membership_customer_id, membership_name, membership_type, membership_description
- Payments Entity : Attributes of Payments are payment_id, payment_customer_id, payment_date, payment_amount, payment_description
- Profiles Entity : Attributes of Profiles are profile_id, profile_member_id, profile_name, profile_type, profile_description
Description of Membership Management System Database :
- The details of Members is store into the Members tables respective with all tables
- Each entity (Profiles, Accounts, Payments, Login, Members) contains primary key and unique keys.
- The entity Accounts, Payments has binded with Members, Login entities with foreign key
- There is one-to-one and one-to-many relationships available between Payments, Memberships, Profiles, Members
- All the entities Members, Payments, Accounts, Profiles are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Membership Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Membership Management System Sequence Diagram
This is the UML sequence diagram of Membership Management System which shows the interaction between the objects of Members, Account, , Login, Payment. The instance of class objects involved in this UML Sequence Diagram of Membership Management System are as follows:
- Members Object
- Account Object
- Object
- Login Object
- Payment Object
Login Sequence Diagram of Membership Management System:
This is the Login Sequence Diagram of Membership Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on , Members, Account, Payment, Login. All the pages such as Account, Payment, Login are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Membership Management System. The various objects in the Payment, , Members, Account, and Login page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Membership Management System which shows the interaction between the objects of Members, Account, , Login, Payment. The instance of class objects involved in this UML Sequence Diagram of Membership Management System are as follows:
- Members Object
- Account Object
- Object
- Login Object
- Payment Object
- Posted By: freeproject
- Comments: 0
Membership Management System Use Case Diagram

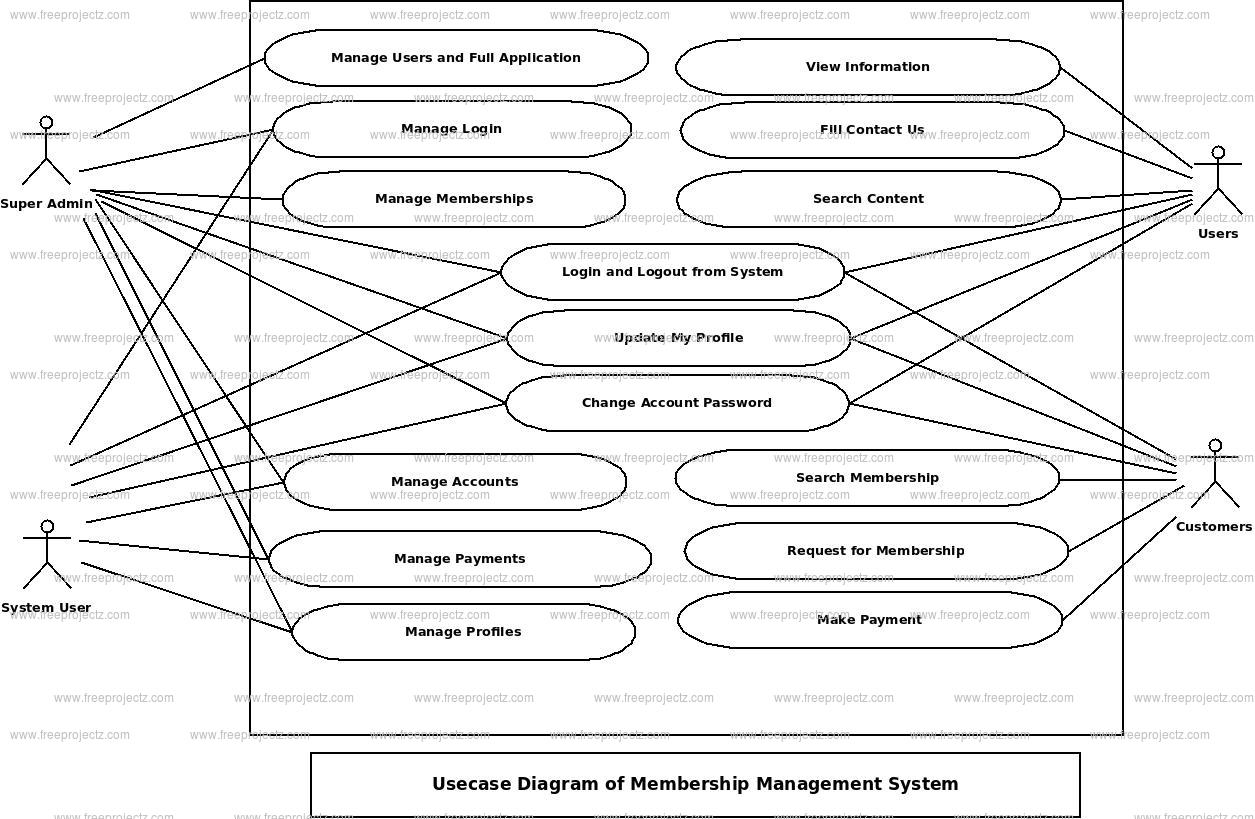

This Use Case Diagram is a graphic depiction of the interactions among the elements of Membership Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Membership Management System. The main actors of Membership Management System in this Use Case Diagram are: Super Admin, System User, Customers, Anonymous Users, who perform the different type of use cases such as Manage Members, Manage Login, Manage Accounts, Manage Memberships, Manage Payments, Manage Profiles, Manage Users and Full Membership Management System Operations. Major elements of the UML use case diagram of Membership Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Membership Management System:
- Super Admin Entity : Use cases of Super Admin are Manage Members, Manage Login, Manage Accounts, Manage Memberships, Manage Payments, Manage Profiles, Manage Users and Full Membership Management System Operations
- System User Entity : Use cases of System User are Manage Members, Manage Login, Manage Accounts, Manage Memberships, Manage Payments, Manage Profiles
- Customers Entity : Use cases of Customers are Request for Membership, View Options, View Invoices, Make Payment, Search Membership
- Anonymous Users Entity : Use cases of Anonymous Users are View Information, Fill Contact Us, Search Content
Use Case Diagram of Membership Management System :
