Tourism Management System Activity Diagram

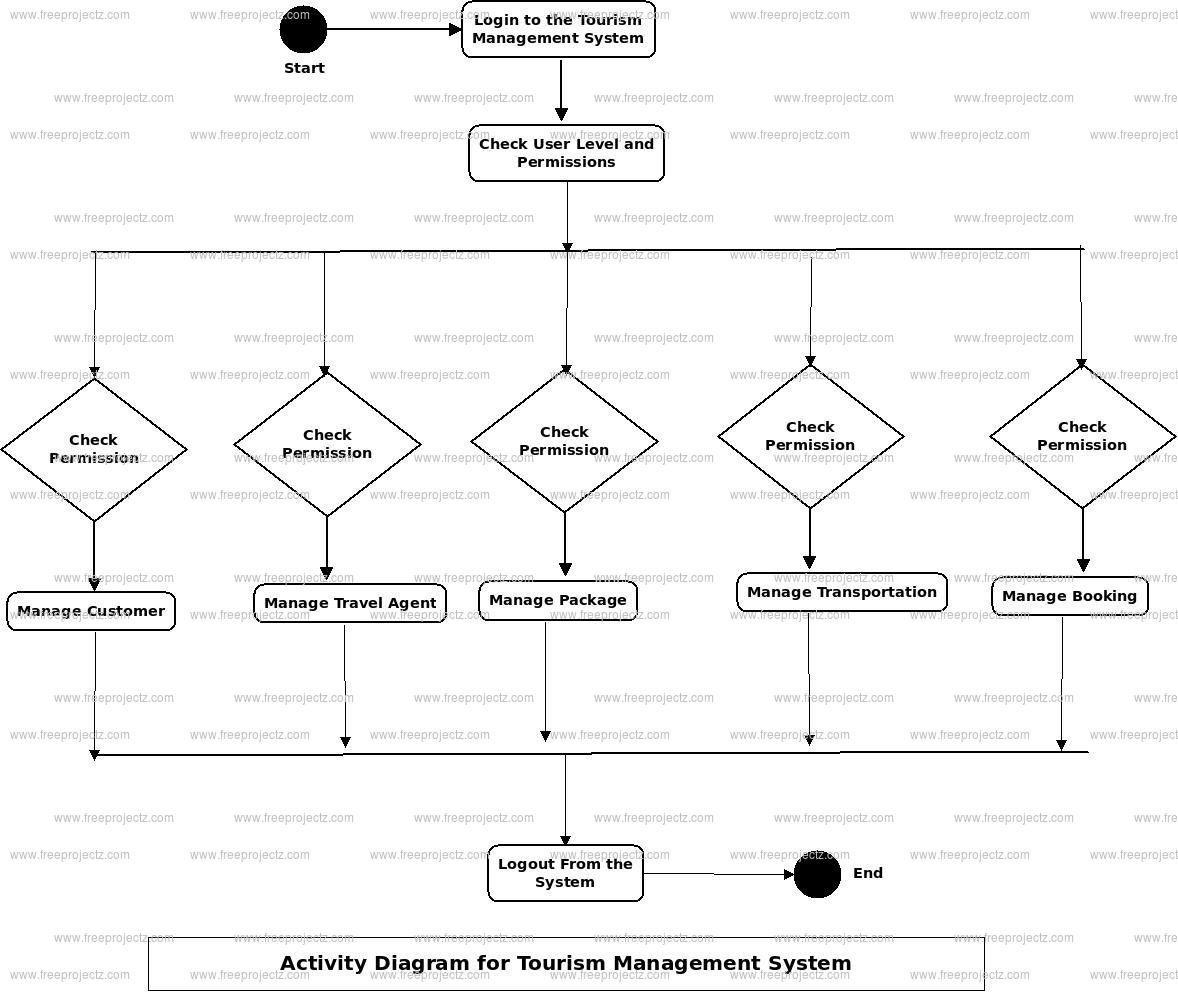

This is the Activity UML diagram of Tourism Management System which shows the flows between the activity of Travel Agent, Package, Customer, Booking, Transportation. The main activity involved in this UML Activity Diagram of Tourism Management System are as follows:
- Travel Agent Activity
- Package Activity
- Customer Activity
- Booking Activity
- Transportation Activity
Features of the Activity UML diagram of Tourism Management System
- Admin User can search Travel Agent, view description of a selected Travel Agent, add Travel Agent, update Travel Agent and delete Travel Agent.
- Its shows the activity flow of editing, adding and updating of Package
- User will be able to search and generate report of Customer, Booking, Transportation
- All objects such as ( Travel Agent, Package, Transportation) are interlinked
- Its shows the full description and flow of Travel Agent, Booking, Transportation, Customer, Package
Login Activity Diagram of Tourism Management System:
This is the Login Activity Diagram of Tourism Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Customer, Travel Agent, Package, Transportation, Booking. All the pages such as Package, Transportation, Booking are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Tourism Management System. The various objects in the Transportation, Customer, Travel Agent, Package, and Booking page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Tourism Management System Class Diagram
Tourism Management System Class Diagram describes the structure of a Tourism Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Tourism Management System are Customer, Travel Agent, Package, Transportation, Booking, Hotel.
Classes of Tourism Management System Class Diagram:
- Customer Class : Manage all the operations of Customer
- Travel Agent Class : Manage all the operations of Travel Agent
- Package Class : Manage all the operations of Package
- Transportation Class : Manage all the operations of Transportation
- Booking Class : Manage all the operations of Booking
- Hotel Class : Manage all the operations of Hotel
Classes and their attributes of Tourism Management System Class Diagram:
- Customer Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Travel Agent Attributes : travel_agent_id, travel_agent_college_id, travel_agent_name, travel_agent_mobile, travel_agent_email, travel_agent_username, travel_agent_password, travel_agent_address
- Package Attributes : package_id, package_tour_id, package_name, package_amount, package_total, package_type, package_description
- Transportation Attributes : transportation_id, transportation_tour_id, transportation_name, vtype, vdescription
- Booking Attributes : booking_id, booking_hotel_id, booking_title, booking_type, booking_date, booking_description
- Hotel Attributes : hotel_id, hotel_name, hotel_type, hotel_rent, hotel_description, hotel_address
Classes and their methods of Tourism Management System Class Diagram:
- Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
- Travel Agent Methods : addTravel Agent(), editTravel Agent(), deleteTravel Agent(), updateTravel Agent(), saveTravel Agent(), searchTravel Agent()
- Package Methods : addPackage(), editPackage(), deletePackage(), updatePackage(), savePackage(), searchPackage()
- Transportation Methods : addTransportation(), editTransportation(), deleteTransportation(), updateTransportation(), saveTransportation(), searchTransportation()
- Booking Methods : addBooking(), editBooking(), deleteBooking(), updateBooking(), saveBooking(), searchBooking()
- Hotel Methods : addHotel(), editHotel(), deleteHotel(), updateHotel(), saveHotel(), searchHotel()
Class Diagram of Tourism Management System :
- Posted By: freeproject
- Comments: 0
Tourism Management System Component Diagram

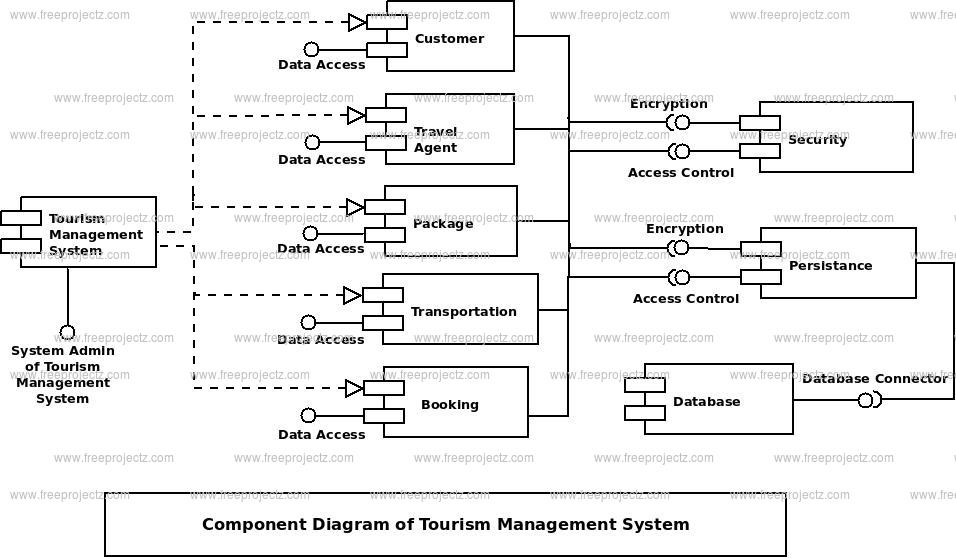

This is a Component diagram of Tourism Management System which shows components, provided and required interfaces, ports, and relationships between the Booking, Tour, Package, and Customer. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Tourism Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Tourism Management System:
- Booking Component
- Tour Component
- Package Component
- Component
- Customer Component
Featues of Tourism Management System Component Diagram:
- You can show the models the components of Tourism Management System.
- Model the database schema of Tourism Management System
- Model the executables of an application of Tourism Management System
- Model the system's source code of Tourism Management System
- Posted By: namita
- Comments: 0
Tourism Management System Dataflow Diagram
Tourism Management System Data flow diagram is often used as a preliminary step to create an overview of the Tourism without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Tourism process. It contains all of the userflow and their entities such all the flow of Coustomer, Travel Agent, Package, Transportation, Booking, Hotel, Tour. All of the below diagrams has been used for the visualization of data processing and structured design of the Tourism process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Tourism Management System :

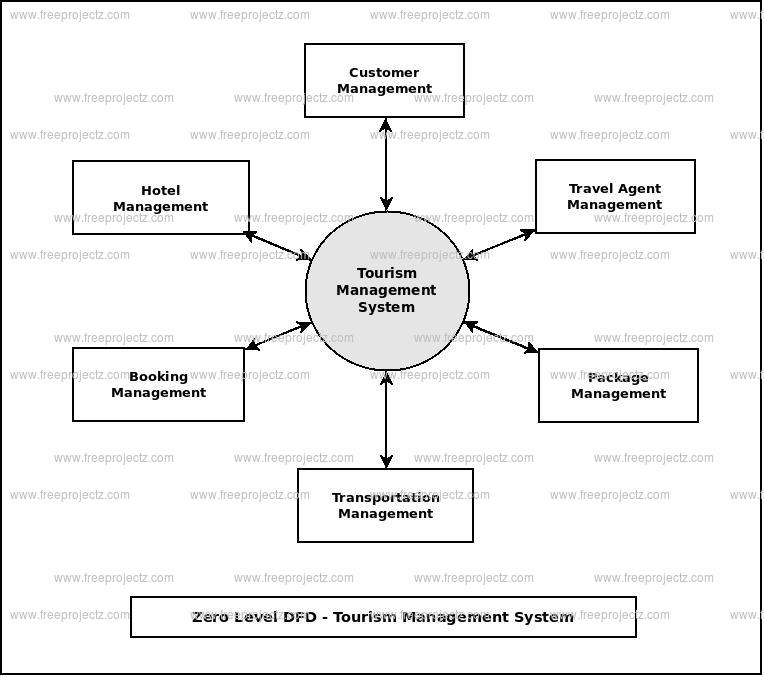

This is the Zero Level DFD of Tourism Management System, where we have eloborated the high level process of Tourism. It’s a basic overview of the whole Tourism Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Booking,Hotel and Tour showing the system as a single high-level process, with its relationship to external entities of Coustomer,Travel Agent and Package. It should be easily understood by a wide audience, including Coustomer,Package and Booking In zero leve DFD of Tourism Management System, we have described the high level flow of the Tourism system.High Level Entities and proccess flow of Tourism Management System:
- Managing all the Coustomer
- Managing all the Travel Agent
- Managing all the Package
- Managing all the Transportation
- Managing all the Booking
- Managing all the Hotel
- Managing all the Tour
First Level Data flow Diagram(1st Level DFD) of Tourism Management System :

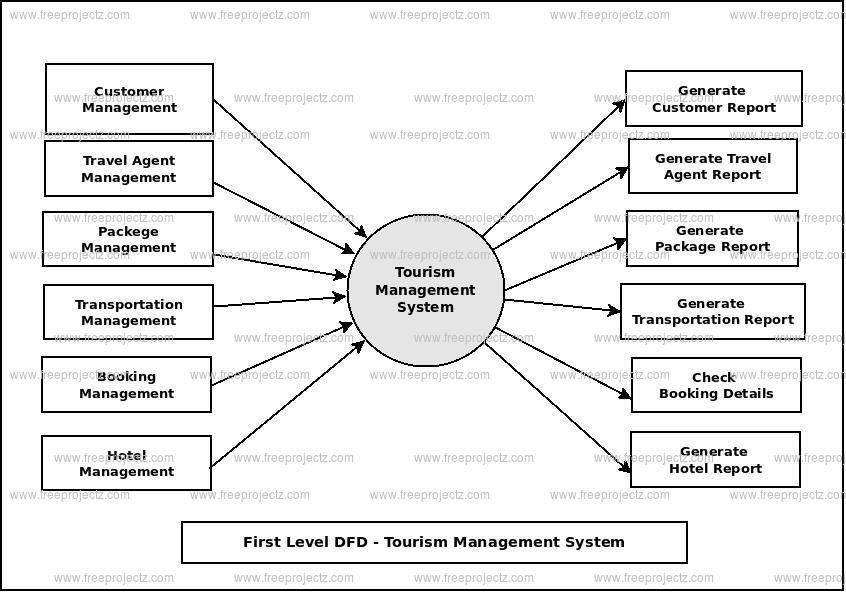

First Level DFD (1st Level) of Tourism Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Tourism Management System system as a whole. It also identifies internal data stores of Tour, Hotel, Booking, Transportation, Package that must be present in order for the Tourism system to do its job, and shows the flow of data between the various parts of Coustomer, Package, Hotel, Tour, Booking of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Tourism.Main entities and output of First Level DFD (1st Level DFD):
- Processing Coustomer records and generate report of all Coustomer
- Processing Travel Agent records and generate report of all Travel Agent
- Processing Package records and generate report of all Package
- Processing Transportation records and generate report of all Transportation
- Processing Booking records and generate report of all Booking
- Processing Hotel records and generate report of all Hotel
- Processing Tour records and generate report of all Tour
Second Level Data flow Diagram(2nd Level DFD) of Tourism Management System :

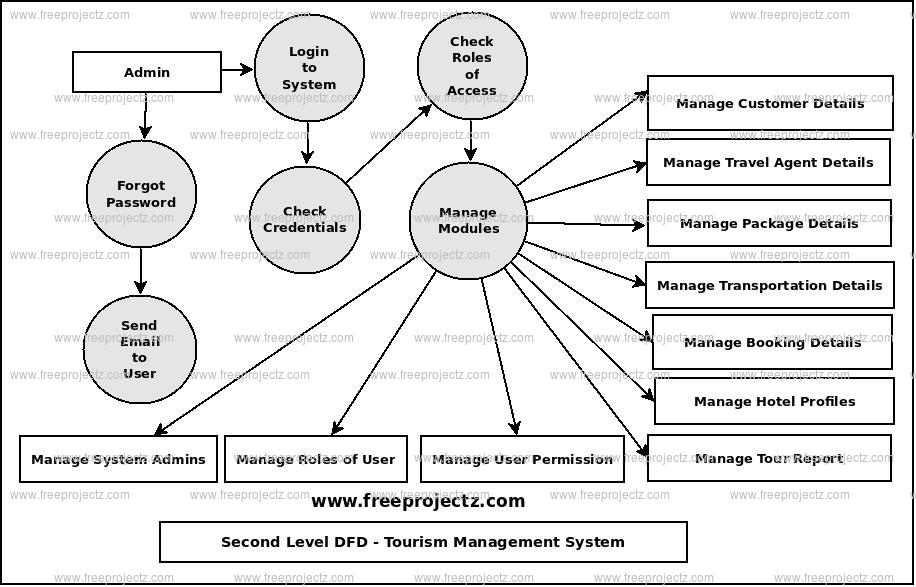

DFD Level 2 then goes one step deeper into parts of Level 1 of Tourism. It may require more functionalities of Tourism to reach the necessary level of detail about the Tourism functioning. First Level DFD (1st Level) of Tourism Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Tour, Hotel, Booking, Transportation, Package, Travel Agent, Coustomer.Low level functionalities of Tourism Management System
- Admin logins to the system and manage all the functionalities of Tourism Management System
- Admin can add, edit, delete and view the records of Coustomer, Package, Booking, Tour
- Admin can manage all the details of Travel Agent, Transportation, Hotel
- Admin can also generate reports of Coustomer, Travel Agent, Package, Transportation, Booking, Hotel
- Admin can search the details of Travel Agent, Booking, Hotel
- Admin can apply different level of filters on report of Coustomer, Transportation, Booking
- Admin can tracks the detailed information of Travel Agent, Package, Transportation, , Booking
- Posted By: freeproject
- Comments: 0
Tourism Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Tourism Management System Entity. The entity-relationship diagram of Tourism Management System shows all the visual instrument of database tables and the relations between Travel Agent, Transportation, Customer, Hotel etc. It used structure data and to define the relationships between structured data groups of Tourism Management System functionalities. The main entities of the Tourism Management System are Customer, Travel Agent, Package, Transportation, Booking and Hotel.
Tourism Management System entities and their attributes :
- Customer Entity : Attributes of Customer are customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Travel Agent Entity : Attributes of Travel Agent are travel_agent_id, travel_agent_college_id, travel_agent_name, travel_agent_mobile, travel_agent_email, travel_agent_username, travel_agent_password, travel_agent_address
- Package Entity : Attributes of Package are package_id, package_tour_id, package_name, package_amount, package_total, package_type, package_description
- Transportation Entity : Attributes of Transportation are transportation_id, transportation_tour_id, transportation_name, vtype, vdescription
- Booking Entity : Attributes of Booking are booking_id, booking_hotel_id, booking_title, booking_type, booking_date, booking_description
- Hotel Entity : Attributes of Hotel are hotel_id, hotel_name, hotel_type, hotel_rent, hotel_description, hotel_address
Description of Tourism Management System Database :
- The details of Customer is store into the Customer tables respective with all tables
- Each entity ( Hotel, Package, Booking, Travel Agent, Customer) contains primary key and unique keys.
- The entity Package, Booking has binded with Customer, Travel Agent entities with foreign key
- There is one-to-one and one-to-many relationships available between Booking, Transportation, Hotel, Customer
- All the entities Customer, Booking, Package, Hotel are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Tourism Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Tourism Management System Sequence Diagram
This is the UML sequence diagram of Tourism Management System which shows the interaction between the objects of Customer, Package, Hotel, Travel Agent, . The instance of class objects involved in this UML Sequence Diagram of Tourism Management System are as follows:
- Customer Object
- Package Object
- Hotel Object
- Travel Agent Object
- Object
Login Sequence Diagram of Tourism Management System:
This is the Login Sequence Diagram of Tourism Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Hotel, Customer, Package, , Travel Agent. All the pages such as Package, , Travel Agent are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Tourism Management System. The various objects in the , Hotel, Customer, Package, and Travel Agent page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Tourism Management System which shows the interaction between the objects of Customer, Package, Hotel, Travel Agent, . The instance of class objects involved in this UML Sequence Diagram of Tourism Management System are as follows:
- Customer Object
- Package Object
- Hotel Object
- Travel Agent Object
- Object
- Posted By: freeproject
- Comments: 0
Tourism Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Tourism Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Tourism Management System. The main actors of Tourism Management System in this Use Case Diagram are: Super Admin, System User, Agents, Student, who perform the different type of use cases such as Customer, Manage Travel Agent, Manage Package, Manage Transportation, Manage Booking, Manage Hotel, Manage Tour, Manage, Manage Users and Full Tourism Management System Operations. Major elements of the UML use case diagram of Tourism Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Tourism Management System:
- Super Admin Entity : Use cases of Super Admin are Customer, Manage Travel Agent, Manage Package, Manage Transportation, Manage Booking, Manage Hotel, Manage Tour, Manage, Manage Users and Full Tourism Management System Operations
- System User Entity : Use cases of System User are Customer, Manage Travel Agent, Manage Package, Manage Transportation, Manage Booking, Manage Hotel, Manage Tour, Manage
- Agents Entity : Use cases of Agents are Create Tours, Puublish Tours, Check Enquiries
- Student Entity : Use cases of Student are Search Tours, Request for Quotations, View Invoices, Make Paymennt
Use Case Diagram of Tourism Management System :
