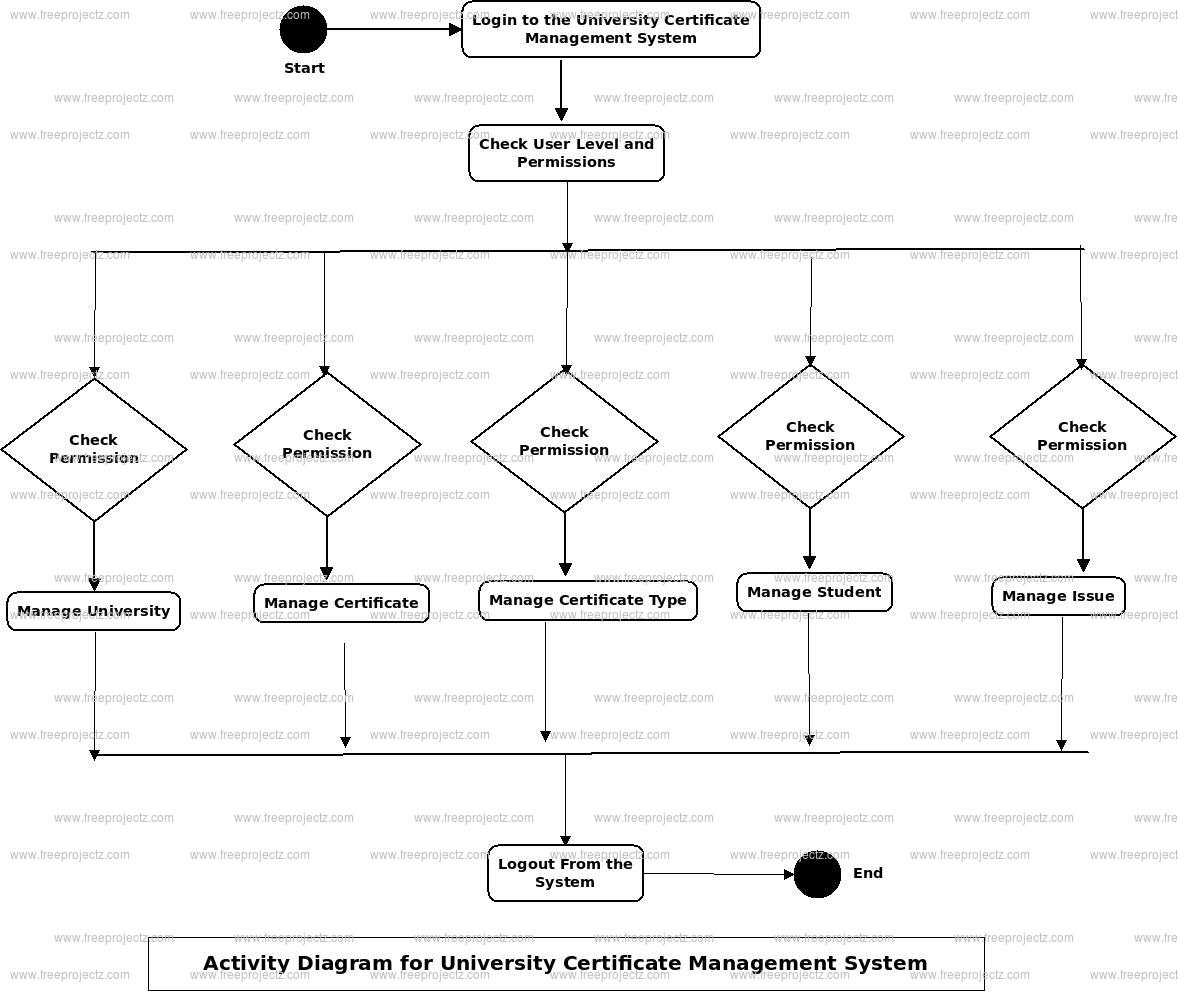

University Certificate Management System Activity Diagram
This is the Activity UML diagram of University Certificate Management System which shows the flows between the activity of Class, University, Certificate Type, Student, Certificate. The main activity involved in this UML Activity Diagram of University Certificate Management System are as follows:
- Class Activity
- University Activity
- Certificate Type Activity
- Student Activity
- Certificate Activity
Features of the Activity UML diagram of University Certificate Management System
- Admin User can search Class, view description of a selected Class, add Class, update Class and delete Class.
- Its shows the activity flow of editing, adding and updating of University
- User will be able to search and generate report of Certificate Type, Student, Certificate
- All objects such as ( Class, University, Certificate) are interlinked
- Its shows the full description and flow of Class, Student, Certificate, Certificate Type, University
Login Activity Diagram of University Certificate Management System:
This is the Login Activity Diagram of University Certificate Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Certificate Type, Class, University, Certificate, Student. All the pages such as University, Certificate, Student are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a University Certificate Management System. The various objects in the Certificate, Certificate Type, Class, University, and Student page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
University Certificate Management System Class Diagram
University Certificate Management System Class Diagram describes the structure of a University Certificate Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the University Certificate Management System are University, University Certificate, Certificate Type, Certificate Request, Student, Issue Certificate.
Classes of University Certificate Management System Class Diagram:
- University Class : Manage all the operations of University
- University Certificate Class : Manage all the operations of University Certificate
- Certificate Type Class : Manage all the operations of Certificate Type
- Certificate Request Class : Manage all the operations of Certificate Request
- Student Class : Manage all the operations of Student
- Issue Certificate Class : Manage all the operations of Issue Certificate
Classes and their attributes of University Certificate Management System Class Diagram:
- University Attributes : university_id, university_name, university_place, university_type, university_description, university_address
- University Certificate Attributes : certificate_id, certificate_name, certificate_type, certificate_year, certificate_description
- Certificate Type Attributes : certificate_type_id, certificate_type_name, certificate_type_year, certificate_type_description
- Certificate Request Attributes : request_id, request_student_id, request_name, request_type, request_description
- Student Attributes : student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
- Issue Certificate Attributes : issue_id, issue_certificate_id, issue_student_id, issue_date, issue_renewl, issue_expiry, issue_description
Classes and their methods of University Certificate Management System Class Diagram:
- University Methods : addUniversity(), editUniversity(), deleteUniversity(), updateUniversity(), saveUniversity(), searchUniversity()
- University Certificate Methods : addUniversity Certificate(), editUniversity Certificate(), deleteUniversity Certificate(), updateUniversity Certificate(), saveUniversity Certificate(), searchUniversity Certificate()
- Certificate Type Methods : addCertificate Type(), editCertificate Type(), deleteCertificate Type(), updateCertificate Type(), saveCertificate Type(), searchCertificate Type()
- Certificate Request Methods : addCertificate Request(), editCertificate Request(), deleteCertificate Request(), updateCertificate Request(), saveCertificate Request(), searchCertificate Request()
- Student Methods : addStudent(), editStudent(), deleteStudent(), updateStudent(), saveStudent(), searchStudent()
- Issue Certificate Methods : addIssue Certificate(), editIssue Certificate(), deleteIssue Certificate(), updateIssue Certificate(), saveIssue Certificate(), searchIssue Certificate()
Class Diagram of University Certificate Management System :
- Posted By: freeproject
- Comments: 0

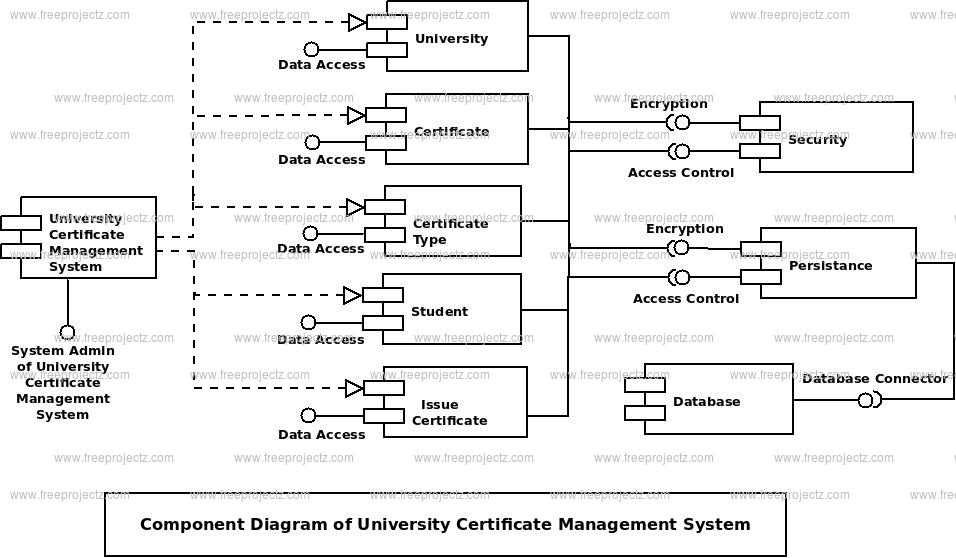

University Certificate Management System Component Diagram
This is a Component diagram of University Certificate Management System which shows components, provided and required interfaces, ports, and relationships between the Certificate, Issue Certificate, Certificate Type, University and Student. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). University Certificate Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of University Certificate Management System:
- Certificate Component
- Issue Certificate Component
- Certificate Type Component
- University Component
- Student Component
Featues of University Certificate Management System Component Diagram:
- You can show the models the components of University Certificate Management System.
- Model the database schema of University Certificate Management System
- Model the executables of an application of University Certificate Management System
- Model the system's source code of University Certificate Management System
- Posted By: freeproject
- Comments: 0
University Certificate Management System Dataflow Diagram
University Certificate Management System Data flow diagram is often used as a preliminary step to create an overview of the University Certificate without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the University Certificate process. It contains all of the userflow and their entities such all the flow of University, Certificate, Certificate Request, Certificate Type, Student, Issue Certificate, Class. All of the below diagrams has been used for the visualization of data processing and structured design of the University Certificate process and working flow.

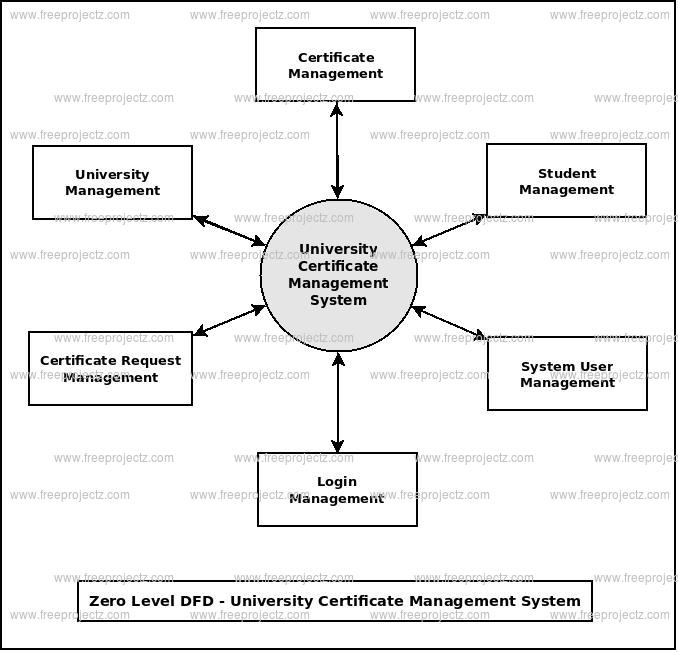

Zero Level Data flow Diagram(0 Level DFD) of University Certificate Management System :
This is the Zero Level DFD of University Certificate Management System, where we have eloborated the high level process of University Certificate. It’s a basic overview of the whole University Certificate Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Student,Issue Certificate and Class showing the system as a single high-level process, with its relationship to external entities of University,Certificate and Certificate Request. It should be easily understood by a wide audience, including University,Certificate Request and Student In zero leve DFD of University Certificate Management System, we have described the high level flow of the University Certificate system.High Level Entities and proccess flow of University Certificate Management System:
- Managing all the University
- Managing all the Certificate
- Managing all the Certificate Request
- Managing all the Certificate Type
- Managing all the Student
- Managing all the Issue Certificate
- Managing all the Class

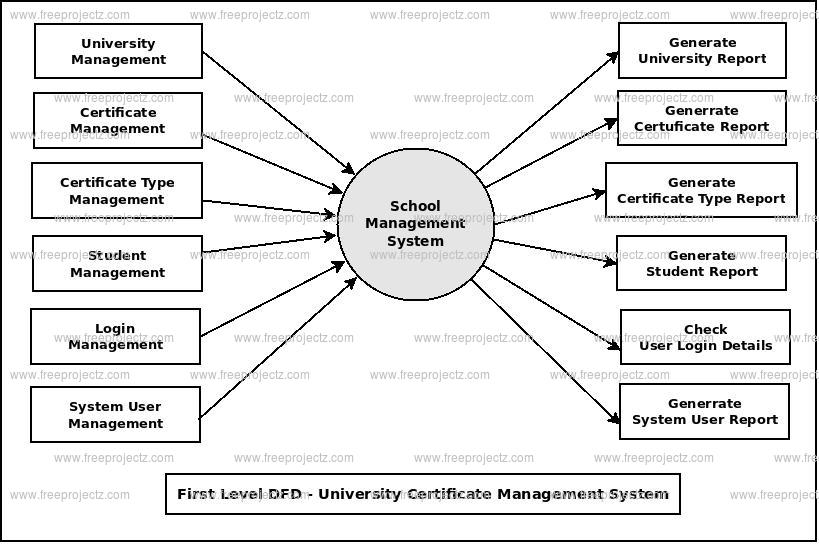

First Level Data flow Diagram(1st Level DFD) of University Certificate Management System :
First Level DFD (1st Level) of University Certificate Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the University Certificate Management System system as a whole. It also identifies internal data stores of Class, Issue Certificate, Student, Certificate Type, Certificate Request that must be present in order for the University Certificate system to do its job, and shows the flow of data between the various parts of University, Certificate Request, Issue Certificate, Class, Student of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of University Certificate.Main entities and output of First Level DFD (1st Level DFD):
- Processing University records and generate report of all University
- Processing Certificate records and generate report of all Certificate
- Processing Certificate Request records and generate report of all Certificate Request
- Processing Certificate Type records and generate report of all Certificate Type
- Processing Student records and generate report of all Student
- Processing Issue Certificate records and generate report of all Issue Certificate
- Processing Class records and generate report of all Class

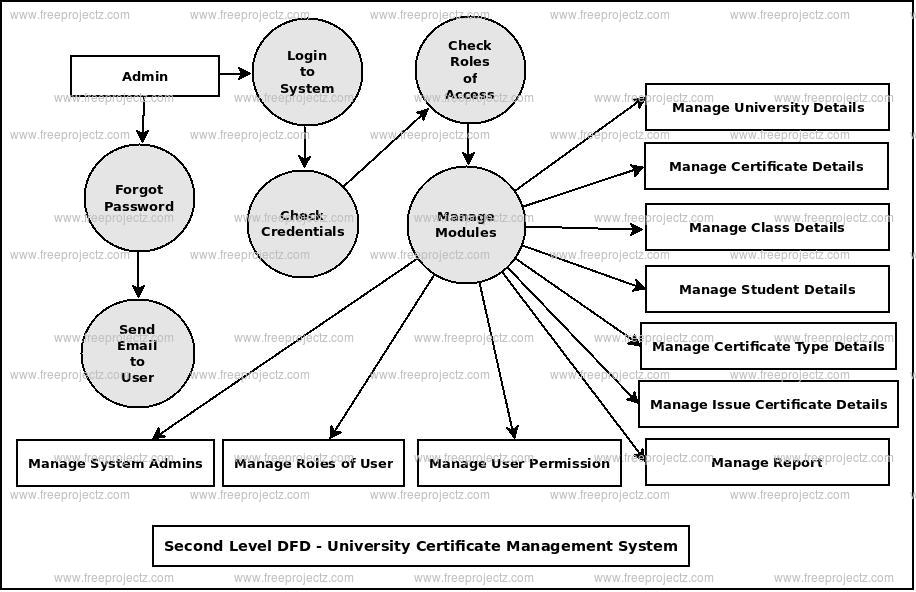

Second Level Data flow Diagram(2nd Level DFD) of University Certificate Management System :
DFD Level 2 then goes one step deeper into parts of Level 1 of University Certificate. It may require more functionalities of University Certificate to reach the necessary level of detail about the University Certificate functioning. First Level DFD (1st Level) of University Certificate Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Class, Issue Certificate, Student, Certificate Type, Certificate Request, Certificate, University.Low level functionalities of University Certificate Management System
- Admin logins to the system and manage all the functionalities of University Certificate Management System
- Admin can add, edit, delete and view the records of University, Certificate Request, Student, Class
- Admin can manage all the details of Certificate, Certificate Type, Issue Certificate
- Admin can also generate reports of University, Certificate, Certificate Request, Certificate Type, Student, Issue Certificate
- Admin can search the details of Certificate, Student, Issue Certificate
- Admin can apply different level of filters on report of University, Certificate Type, Student
- Admin can tracks the detailed information of Certificate, Certificate Request, Certificate Type, , Student
- Posted By: freeproject
- Comments: 0
University Certificate Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of University Certificate Management System Entity. The entity-relationship diagram of University Certificate Management System shows all the visual instrument of database tables and the relations between University Certificate, Certificate Request, University, Issue Certificate etc. It used structure data and to define the relationships between structured data groups of University Certificate Management System functionalities. The main entities of the University Certificate Management System are University, University Certificate, Certificate Type, Certificate Request, Student and Issue Certificate.
University Certificate Management System entities and their attributes :
- University Entity : Attributes of University are university_id, university_name, university_place, university_type, university_description, university_address
- University Certificate Entity : Attributes of University Certificate are certificate_id, certificate_name, certificate_type, certificate_year, certificate_description
- Certificate Type Entity : Attributes of Certificate Type are certificate_type_id, certificate_type_name, certificate_type_year, certificate_type_description
- Certificate Request Entity : Attributes of Certificate Request are request_id, request_student_id, request_name, request_type, request_description
- Student Entity : Attributes of Student are student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
- Issue Certificate Entity : Attributes of Issue Certificate are issue_id, issue_certificate_id, issue_student_id, issue_date, issue_renewl, issue_expiry, issue_description
Description of University Certificate Management System Database :
- The details of University is store into the University tables respective with all tables
- Each entity ( Issue Certificate, Certificate Type, Student, University Certificate, University) contains primary key and unique keys.
- The entity Certificate Type, Student has binded with University, University Certificate entities with foreign key
- There is one-to-one and one-to-many relationships available between Student, Certificate Request, Issue Certificate, University
- All the entities University, Student, Certificate Type, Issue Certificate are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of University Certificate Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0

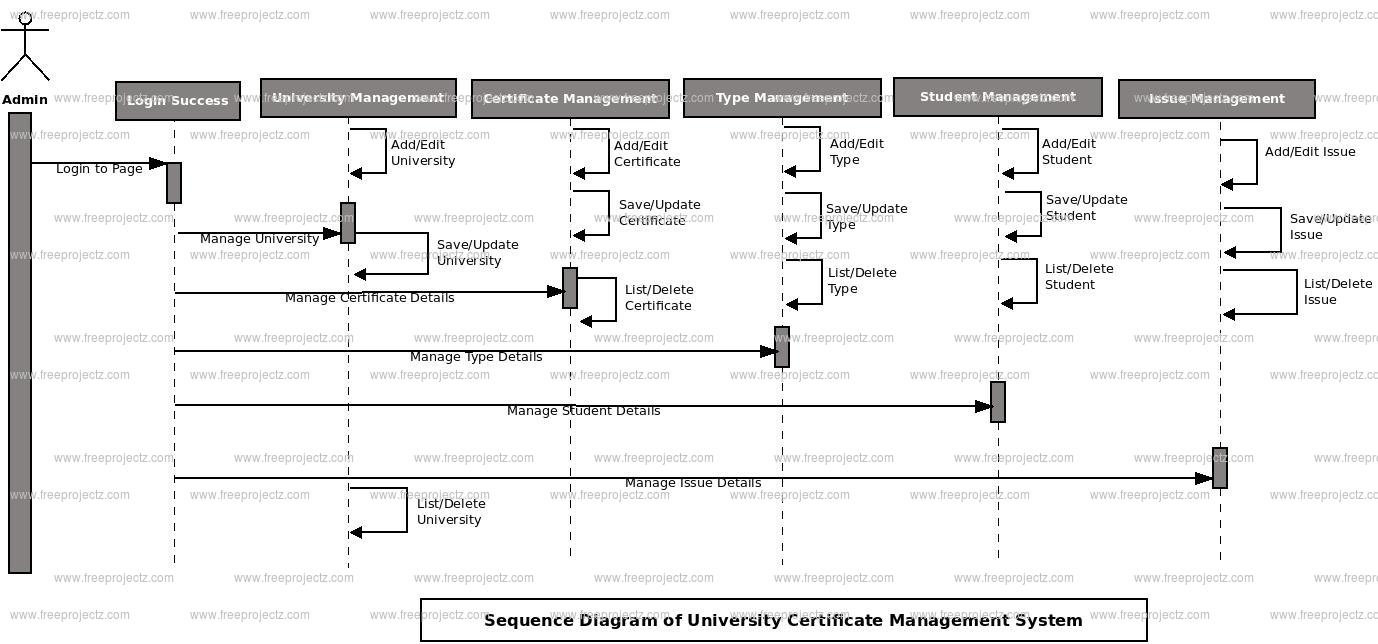

University Certificate Management System Sequence Diagram
This is the UML sequence diagram of University Certificate Management System which shows the interaction between the objects of Student, Class, University, Certificate Type, Certificate. The instance of class objects involved in this UML Sequence Diagram of University Certificate Management System are as follows:
- Student Object
- Class Object
- University Object
- Certificate Type Object
- Certificate Object
Login Sequence Diagram of University Certificate Management System:
This is the Login Sequence Diagram of University Certificate Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on University, Student, Class, Certificate, Certificate Type. All the pages such as Class, Certificate, Certificate Type are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a University Certificate Management System. The various objects in the Certificate, University, Student, Class, and Certificate Type page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of University Certificate Management System which shows the interaction between the objects of Student, Class, University, Certificate Type, Certificate. The instance of class objects involved in this UML Sequence Diagram of University Certificate Management System are as follows:
- Student Object
- Class Object
- University Object
- Certificate Type Object
- Certificate Object
- Posted By: freeproject
- Comments: 0

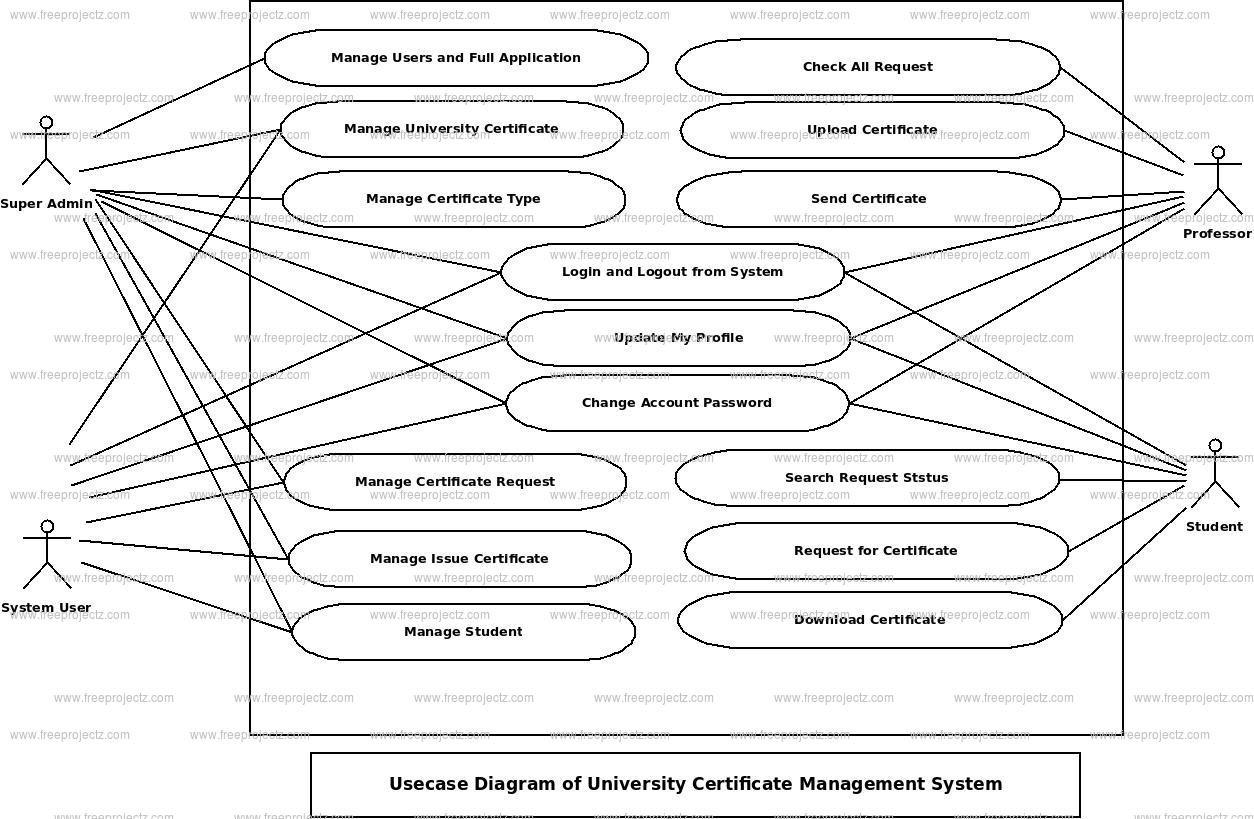

University Certificate Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of University Certificate Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of University Certificate Management System. The main actors of University Certificate Management System in this Use Case Diagram are: Super Admin, System User, Professor, Student, who perform the different type of use cases such as University, Manage University Certificate, Manage Certificate Type, Manage Certificate Request, Manage Student, Manage Issue Certificate, Manage Class, Manage Users and Full University Certificate Management System Operations. Major elements of the UML use case diagram of University Certificate Management System are shown on the picture below.
The relationships between and among the actors and the use cases of University Certificate Management System:
- Super Admin Entity : Use cases of Super Admin are University, Manage University Certificate, Manage Certificate Type, Manage Certificate Request, Manage Student, Manage Issue Certificate, Manage Class, Manage Users and Full University Certificate Management System Operations
- System User Entity : Use cases of System User are University, Manage University Certificate, Manage Certificate Type, Manage Certificate Request, Manage Student, Manage Issue Certificate, Manage Class
- Professor Entity : Use cases of Professor are Check All Request, Upload Certificate, Search Certificate, Send Certificate
- Student Entity : Use cases of Student are Request for Certificate, Search Request Status, Download Certificate
Use Case Diagram of University Certificate Management System :
