Provident Fund System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

Provident Fund System Class Diagram describes the structure of a Provident Fund System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Provident Fund System are Provident Fund, Employees, Compnay Shares, Registration, Contributions, Users.

Classes of Provident Fund System Class Diagram:

  • Provident Fund Class : Manage all the operations of Provident Fund
  • Employees Class : Manage all the operations of Employees
  • Compnay Shares Class : Manage all the operations of Compnay Shares
  • Registration Class : Manage all the operations of Registration
  • Contributions Class : Manage all the operations of Contributions
  • Users Class : Manage all the operations of Users

Classes and their attributes of Provident Fund System Class Diagram:

  • Provident Fund Attributes : provident_fund_id, provident_fund_name, provident_fund_type, provident_fund_description
  • Employees Attributes : employee_id, employee_name, employee_mobile, employee_email, employee_username, employee_password, employee_address
  • Compnay Shares Attributes : company_shares_id, company_shares_name, company_shares_type, company_shares_description
  • Registration Attributes : registration_id, registration_employee_id, registration_name, registration_type, registration_number, registration_date, registration_description
  • Contributions Attributes : contribution_id, contribution_name, contribution_type, vdescription
  • Users Attributes : user_id, user_name, user_mobile, user_email, user_username, user_password, user_address

Classes and their methods of Provident Fund System Class Diagram:

  • Provident Fund Methods : addProvident Fund(), editProvident Fund(), deleteProvident Fund(), updateProvident Fund(), saveProvident Fund(), searchProvident Fund()
  • Employees Methods : addEmployees(), editEmployees(), deleteEmployees(), updateEmployees(), saveEmployees(), searchEmployees()
  • Compnay Shares Methods : addCompnay Shares(), editCompnay Shares(), deleteCompnay Shares(), updateCompnay Shares(), saveCompnay Shares(), searchCompnay Shares()
  • Registration Methods : addRegistration(), editRegistration(), deleteRegistration(), updateRegistration(), saveRegistration(), searchRegistration()
  • Contributions Methods : addContributions(), editContributions(), deleteContributions(), updateContributions(), saveContributions(), searchContributions()
  • Users Methods : addUsers(), editUsers(), deleteUsers(), updateUsers(), saveUsers(), searchUsers()

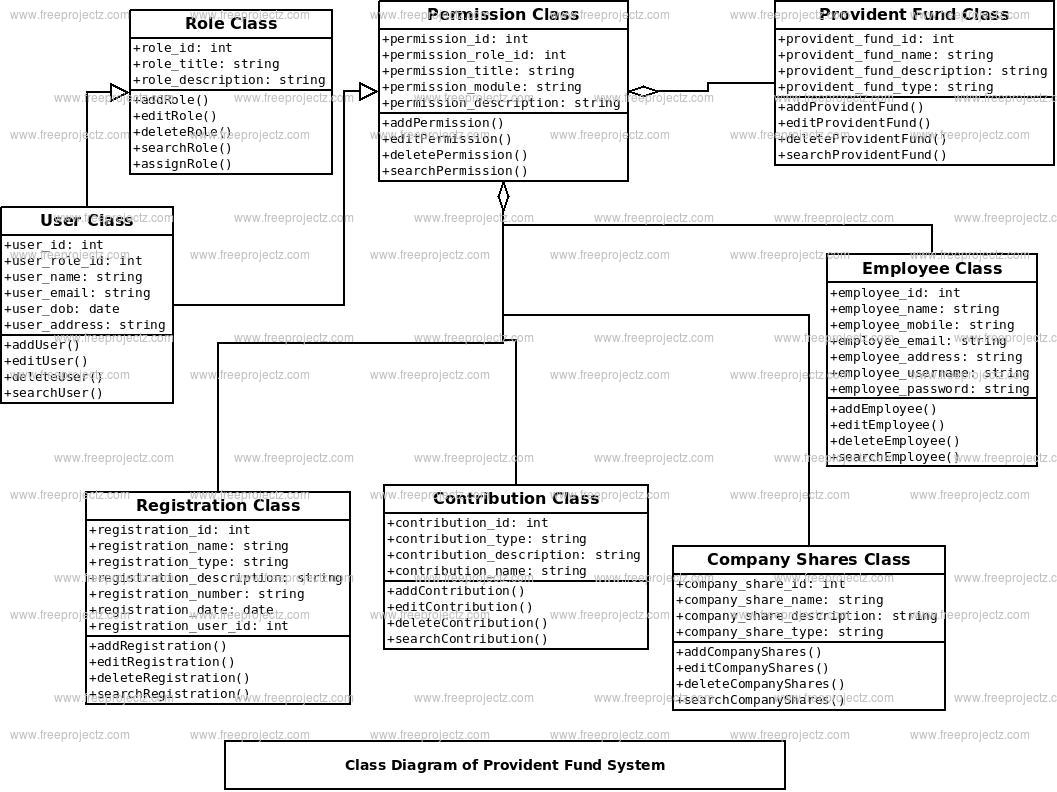

Class Diagram of Provident Fund System :

Class Diagram Image:
Provident Fund System Class Diagram
