Classifieds Management System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Classifieds Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Classifieds Management System. The main actors of Classifieds Management System in this Use Case Diagram are: Super Admin, System User, Advertsier, Customer, who perform the different type of use cases such as Manage Advertisement, Manage Location, Manage User, Manage Categories, Manage Create, Manage Listing, Manage Registration, Manage Users and Full Classifieds Management System Operations. Major elements of the UML use case diagram of Classifieds Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Classifieds Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Advertisement, Manage Location, Manage User, Manage Categories, Manage Create, Manage Listing, Manage Registration, Manage Users and Full Classifieds Management System Operations
  • System User Entity : Use cases of System User are Manage Advertisement, Manage Location, Manage User, Manage Categories, Manage Create, Manage Listing, Manage Registration
  • Advertsier Entity : Use cases of Advertsier are Create Advertisement, Create Invoices, Check Reports, Manage Payments, Manage Subcriptions
  • Customer Entity : Use cases of Customer are Request for Advertisements, View Invoices, Make Payment, View Histroy

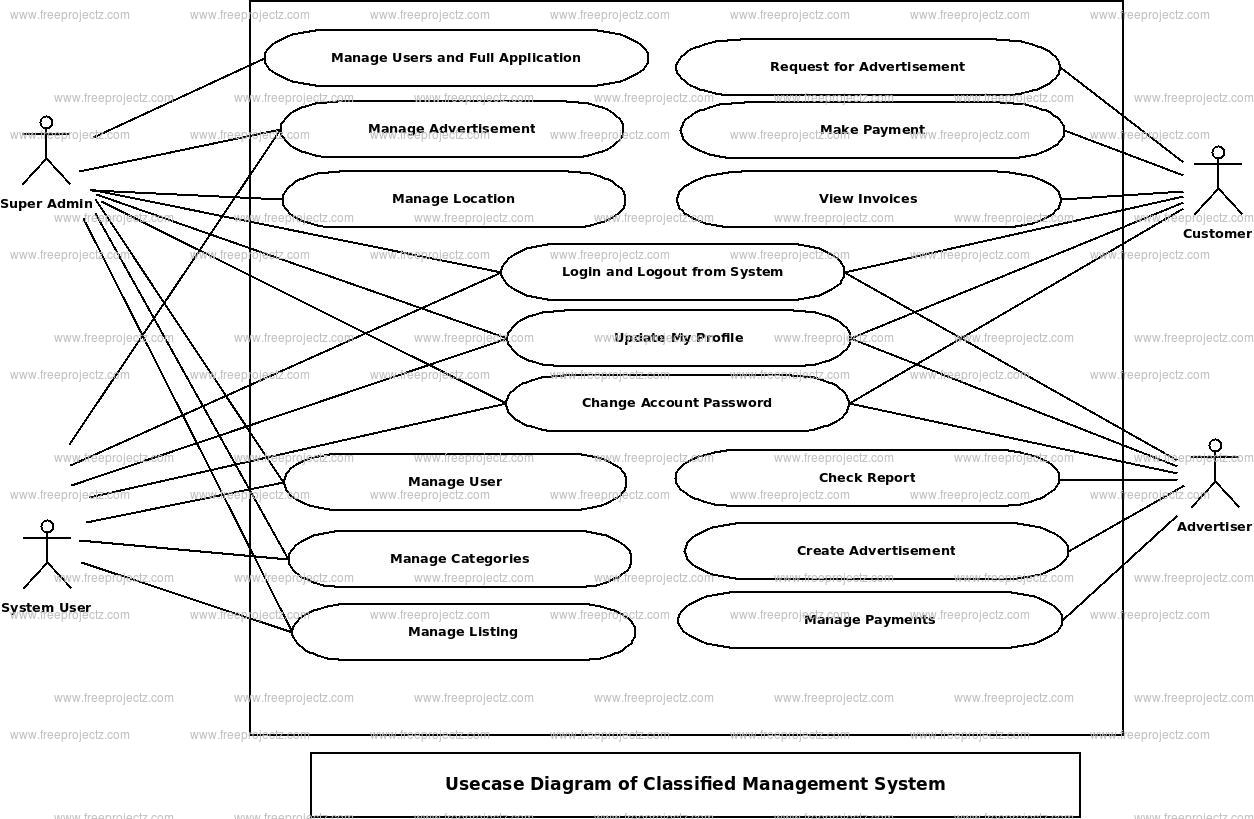

Use Case Diagram of Classifieds Management System :

 Classifieds Management System Use Case Diagram
