Movie Library Management System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Movie Library Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Movie Library Management System. The main actors of Movie Library Management System in this Use Case Diagram are: Super Admin, System User, Agent, Customer, who perform the different type of use cases such as Manage Movie Library, Manage Downloading, Manage Movie Language, Manage Movie Type, Manage Movie, Manage Shows, Manage Users and Full Movie Library Management System Operations. Major elements of the UML use case diagram of Movie Library Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Movie Library Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Movie Library, Manage Downloading, Manage Movie Language, Manage Movie Type, Manage Movie, Manage Shows, Manage Users and Full Movie Library Management System Operations
  • System User Entity : Use cases of System User are Manage Movie Library, Manage Downloading, Manage Movie Language, Manage Movie Type, Manage Movie, Manage Shows
  • Agent Entity : Use cases of Agent are View Requests, Create Download Link, Create Bills, Collect Payments
  • Customer Entity : Use cases of Customer are Create Movie Request, Check Download Link, Download Movie, Make Payments

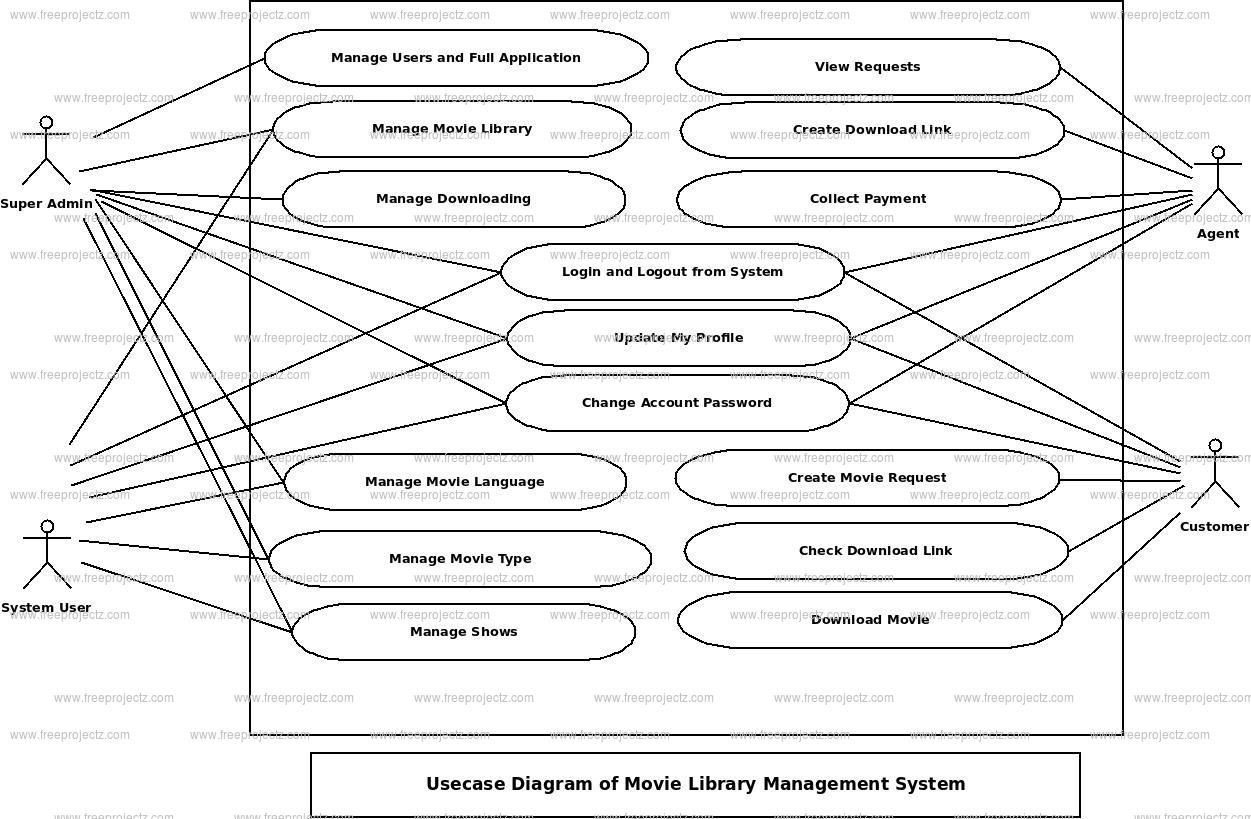

Use Case Diagram of Movie Library Management System :

Movie Library Management System Use Case Diagram
