Result Management System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Result Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Result Management System. The main actors of Result Management System in this Use Case Diagram are: Super Admin, System User, Teacher, Student, who perform the different type of use cases such as Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester, Manage Users and Full Result Management System Operations. Major elements of the UML use case diagram of Result Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Result Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester, Manage Users and Full Result Management System Operations
  • System User Entity : Use cases of System User are Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester
  • Teacher Entity : Use cases of Teacher are Check Exams, Publish Results, Add Marks
  • Student Entity : Use cases of Student are Search Roll No, View Results, Download Results

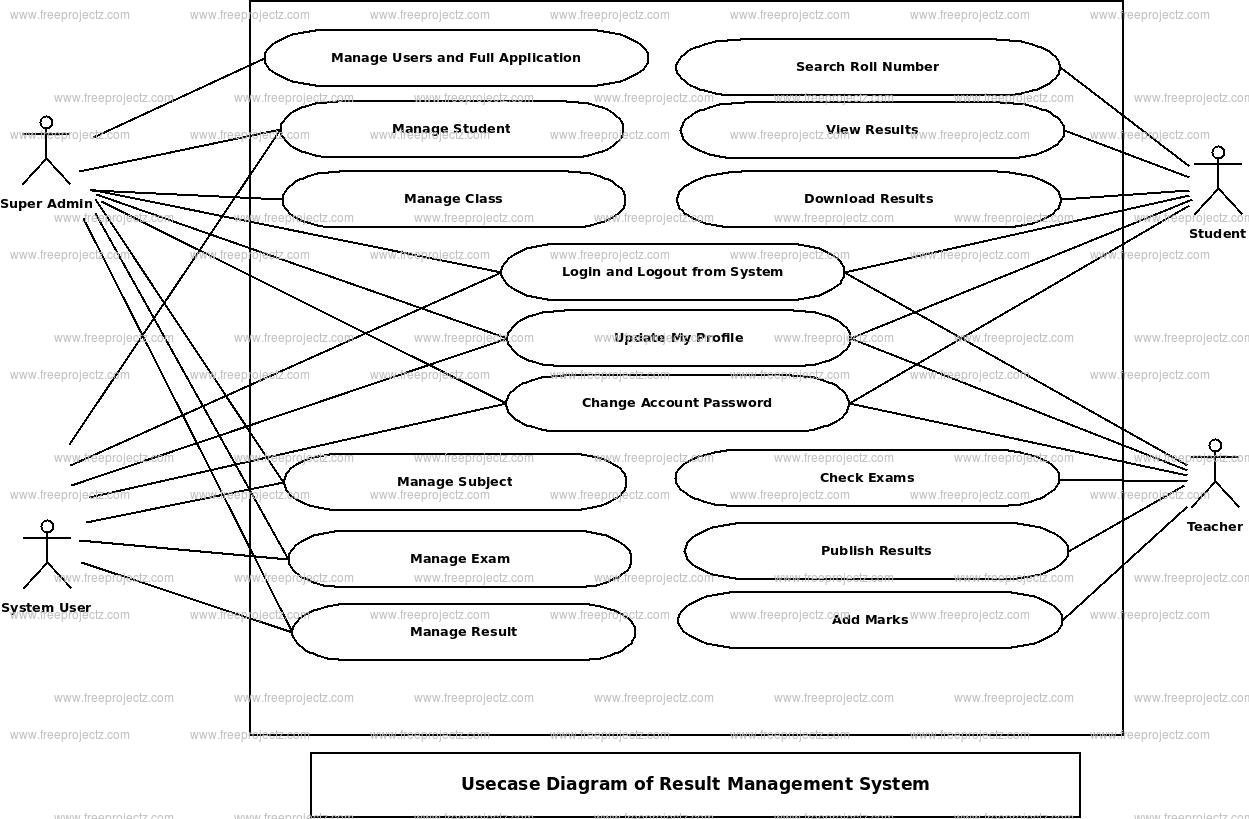

Use Case Diagram of Result Management System :

Result Management System Use Case Diagram
