Traffic Controller System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

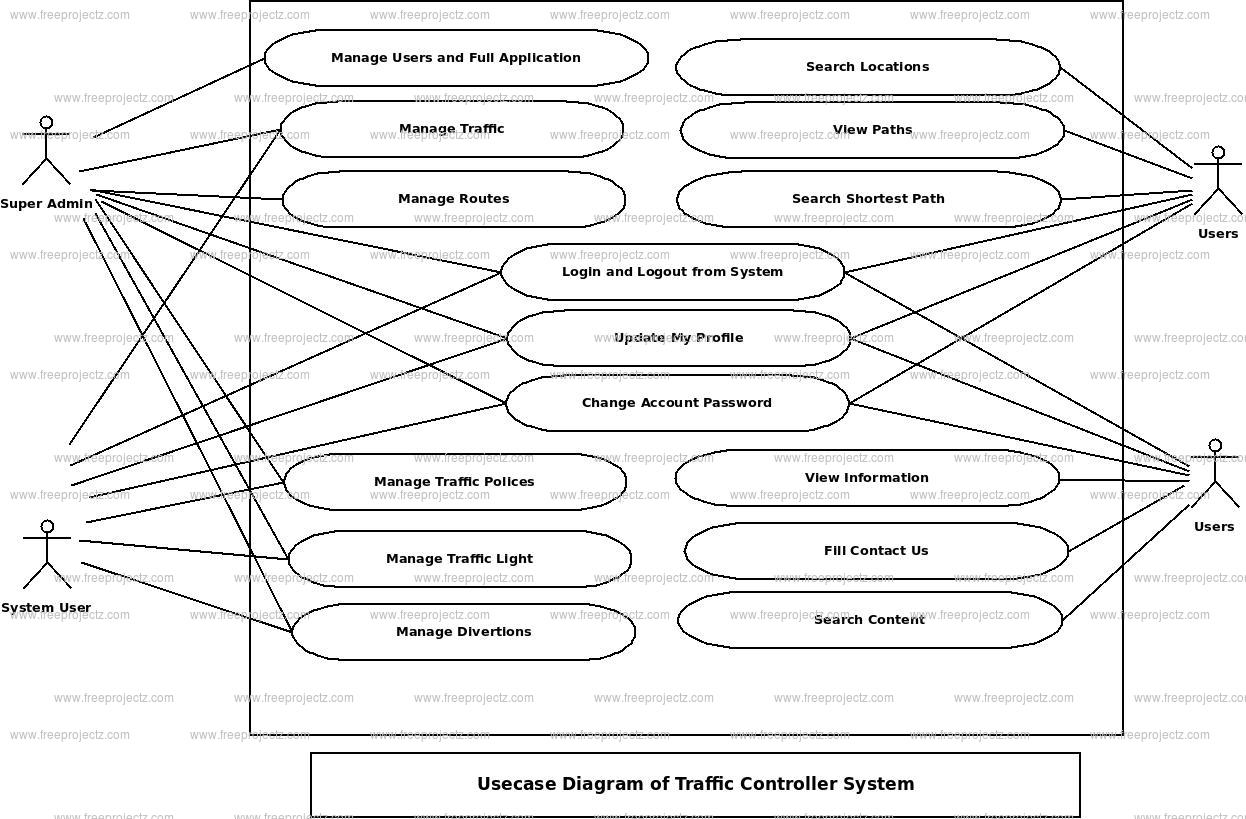

This Use Case Diagram is a graphic depiction of the interactions among the elements of Traffic Controller System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Traffic Controller System. The main actors of Traffic Controller System in this Use Case Diagram are: Super Admin, System User, Users, Anonymous Users, who perform the different type of use cases such as Traffic, Manage Routes, Manage Length, Manage Traffic Polices, Manage Divertions, Manage Traffic Light,, Manage Users and Full Traffic Controller System Operations. Major elements of the UML use case diagram of Traffic Controller System are shown on the picture below.

The relationships between and among the actors and the use cases of Traffic Controller System:

  • Super Admin Entity : Use cases of Super Admin are Traffic, Manage Routes, Manage Length, Manage Traffic Polices, Manage Divertions, Manage Traffic Light,, Manage Users and Full Traffic Controller System Operations
  • System User Entity : Use cases of System User are Traffic, Manage Routes, Manage Length, Manage Traffic Polices, Manage Divertions, Manage Traffic Light,
  • Users Entity : Use cases of Users are Search Locations, View Paths, Enable Offline Mode, Save locations, Search Shortest Path
  • Anonymous Users Entity : Use cases of Anonymous Users are View Information, Fill Contact Us, Search Content

Use Case Diagram of Traffic Controller System :

Traffic Controller System Use Case Diagram
