Doctors Information System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Doctors Information System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Doctors Information System. The main actors of Doctors Information System in this Use Case Diagram are: Super Admin, System User, Doctor, User, who perform the different type of use cases such as Manage Doctors, Manage Degree, Manage Fees, Manage schedule, Manage Clinics, Manage Test, Manage Users and Full Doctors Information System Operations. Major elements of the UML use case diagram of Doctors Information System are shown on the picture below.

The relationships between and among the actors and the use cases of Doctors Information System:

  • Super Admin Entity : Use cases of Super Admin are Manage Doctors, Manage Degree, Manage Fees, Manage schedule, Manage Clinics, Manage Test, Manage Users and Full Doctors Information System Operations
  • System User Entity : Use cases of System User are Manage Doctors, Manage Degree, Manage Fees, Manage schedule, Manage Clinics, Manage Test
  • Doctor Entity : Use cases of Doctor are Request for Registration, Upload Documents, Update Profile, Update Specialization
  • User Entity : Use cases of User are Search Doctors, Add Comments, Give Reviews, Check Reviews

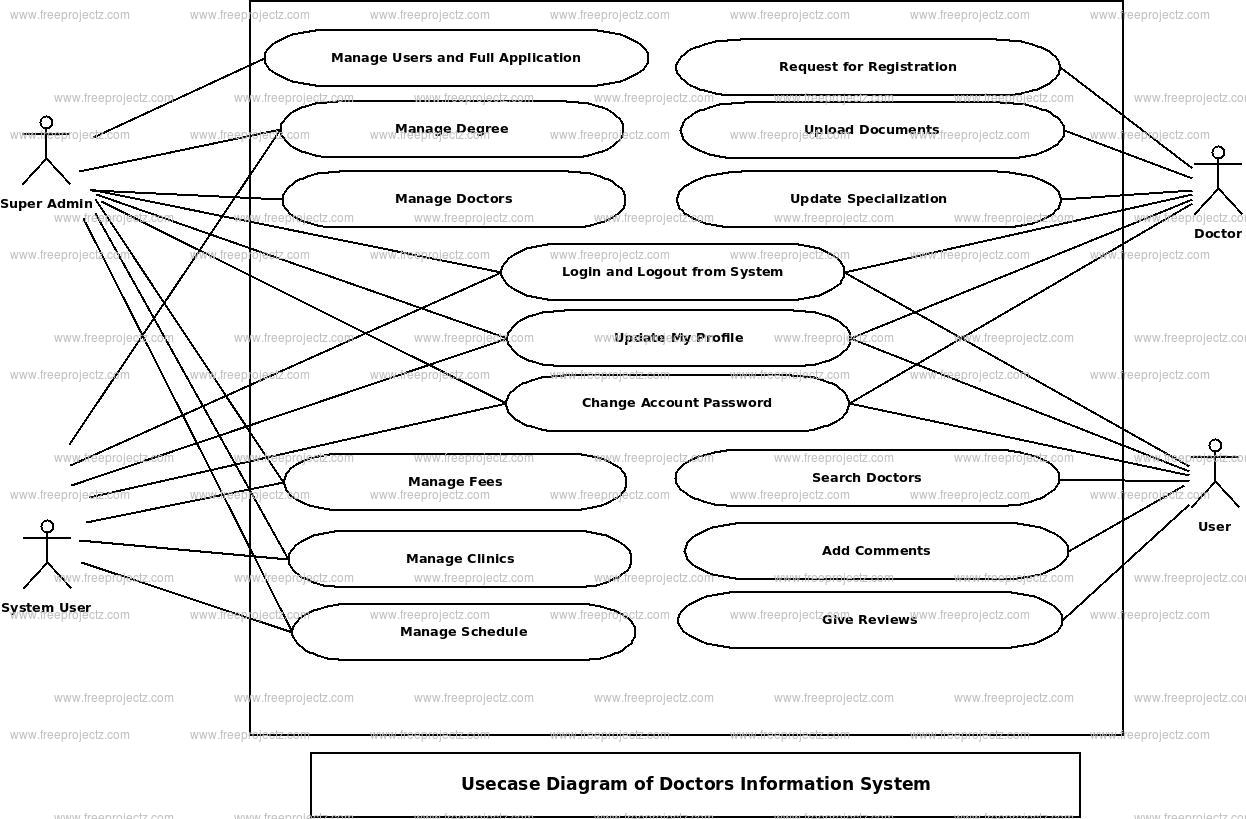

Use Case Diagram of Doctors Information System :

Doctors Information System Use Case Diagram
