Cyber Cafe Management System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

Cyber Cafe Management System Class Diagram describes the structure of a Cyber Cafe Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Cyber Cafe Management System are Computers, Customers, Charges, ID Proof, Downloads, Usage.

Classes of Cyber Cafe Management System Class Diagram:

  • Computers Class : Manage all the operations of Computers
  • Customers Class : Manage all the operations of Customers
  • Charges Class : Manage all the operations of Charges
  • ID Proof Class : Manage all the operations of ID Proof
  • Downloads Class : Manage all the operations of Downloads
  • Usage Class : Manage all the operations of Usage

Classes and their attributes of Cyber Cafe Management System Class Diagram:

  • Computers Attributes : computer_id, computer_customer_id, computer_price, computer_company computer_type, computer_description
  • Customers Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
  • Charges Attributes : charge_id, charge_customer_id, charge_amount, charge_type, charge_description
  • ID Proof Attributes : id_proof_id, id_proof_customer_id, id_proof_name, id_proof_type, id_proof_description
  • Downloads Attributes : download_id, download_title, download_type, download_description
  • Usage Attributes : usage_id, usage_nmae, usage_type, usage_description

Classes and their methods of Cyber Cafe Management System Class Diagram:

  • Computers Methods : addComputers(), editComputers(), deleteComputers(), updateComputers(), saveComputers(), searchComputers()
  • Customers Methods : addCustomers(), editCustomers(), deleteCustomers(), updateCustomers(), saveCustomers(), searchCustomers()
  • Charges Methods : addCharges(), editCharges(), deleteCharges(), updateCharges(), saveCharges(), searchCharges()
  • ID Proof Methods : addID Proof(), editID Proof(), deleteID Proof(), updateID Proof(), saveID Proof(), searchID Proof()
  • Downloads Methods : addDownloads(), editDownloads(), deleteDownloads(), updateDownloads(), saveDownloads(), searchDownloads()
  • Usage Methods : addUsage(), editUsage(), deleteUsage(), updateUsage(), saveUsage(), searchUsage()

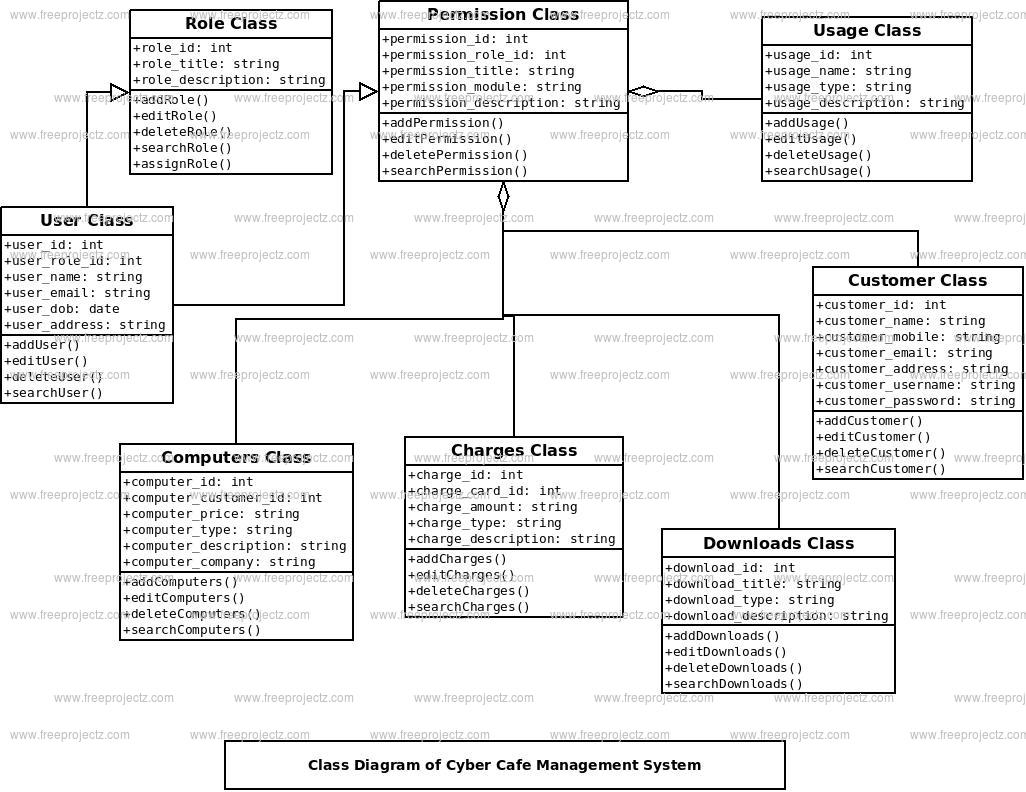

Class Diagram of Cyber Cafe Management System :

Class Diagram Image:
Cyber Cafe Management System Class Diagram
Get 6 diagrams only in 300/- or $6.99 USD.
Call or WhatsApp us on +91-8470010001 for more details.
