Order Processing System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Order Processing System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Order Processing System. The main actors of Order Processing System in this Use Case Diagram are: Super Admin, System User, Manufacturer, Customers, who perform the different type of use cases such as Manage Product, Manage Customer, Manage Order, Manage Bill, Manage Company, Manage Payment, Manage Receipt, Manage Users and Full Order Processing System Operations. Major elements of the UML use case diagram of Order Processing System are shown on the picture below.

The relationships between and among the actors and the use cases of Order Processing System:

  • Super Admin Entity : Use cases of Super Admin are Manage Product, Manage Customer, Manage Order, Manage Bill, Manage Company, Manage Payment, Manage Receipt, Manage Users and Full Order Processing System Operations
  • System User Entity : Use cases of System User are Manage Product, Manage Customer, Manage Order, Manage Bill, Manage Company, Manage Payment, Manage Receipt
  • Manufacturer Entity : Use cases of Manufacturer are Create Products, Create Invoices, Create Bills, Collect Payments, View Order Requests
  • Customers Entity : Use cases of Customers are Create Order Requestt, View Invoices, Make Payments

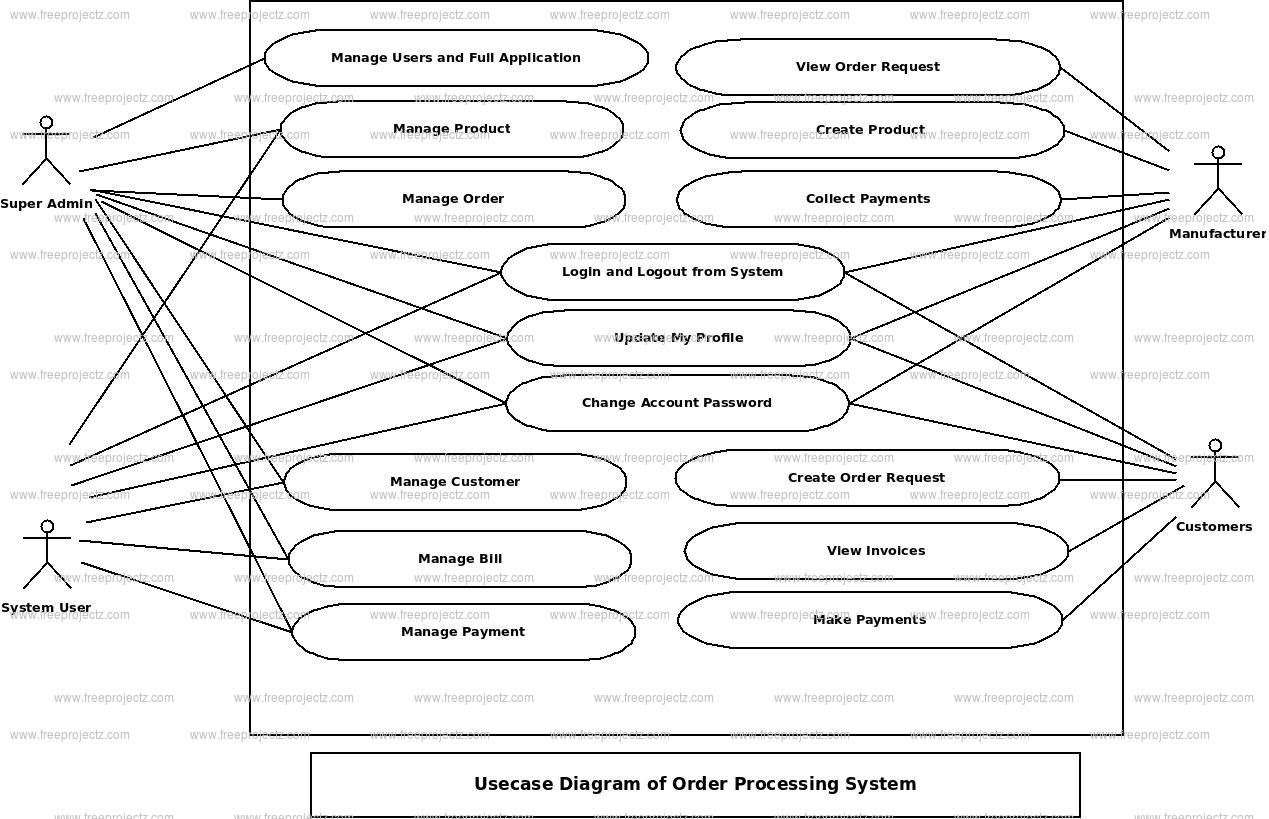

Use Case Diagram of Order Processing System :

Order Processing System Use Case Diagram
