Boutique Store Management System Use Case Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Boutique Store Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Boutique Store Management System. The main actors of Boutique Store Management System in this Use Case Diagram are: Super Admin, System User, Tailor, Customers, who perform the different type of use cases such as Manage Boutique, Manage Clothes, Manage Products, Manage Sales, Manage Inventory, Manage Customers, Manage Users and Full Boutique Store Management System Operations. Major elements of the UML use case diagram of Boutique Store Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Boutique Store Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Boutique, Manage Clothes, Manage Products, Manage Sales, Manage Inventory, Manage Customers, Manage Users and Full Boutique Store Management System Operations
  • System User Entity : Use cases of System User are Manage Boutique, Manage Clothes, Manage Products, Manage Sales, Manage Inventory, Manage Customers
  • Tailor Entity : Use cases of Tailor are Create Customer Requests, Manage Status, View Product
  • Customers Entity : Use cases of Customers are Request Alteration, View Status, Make Payments

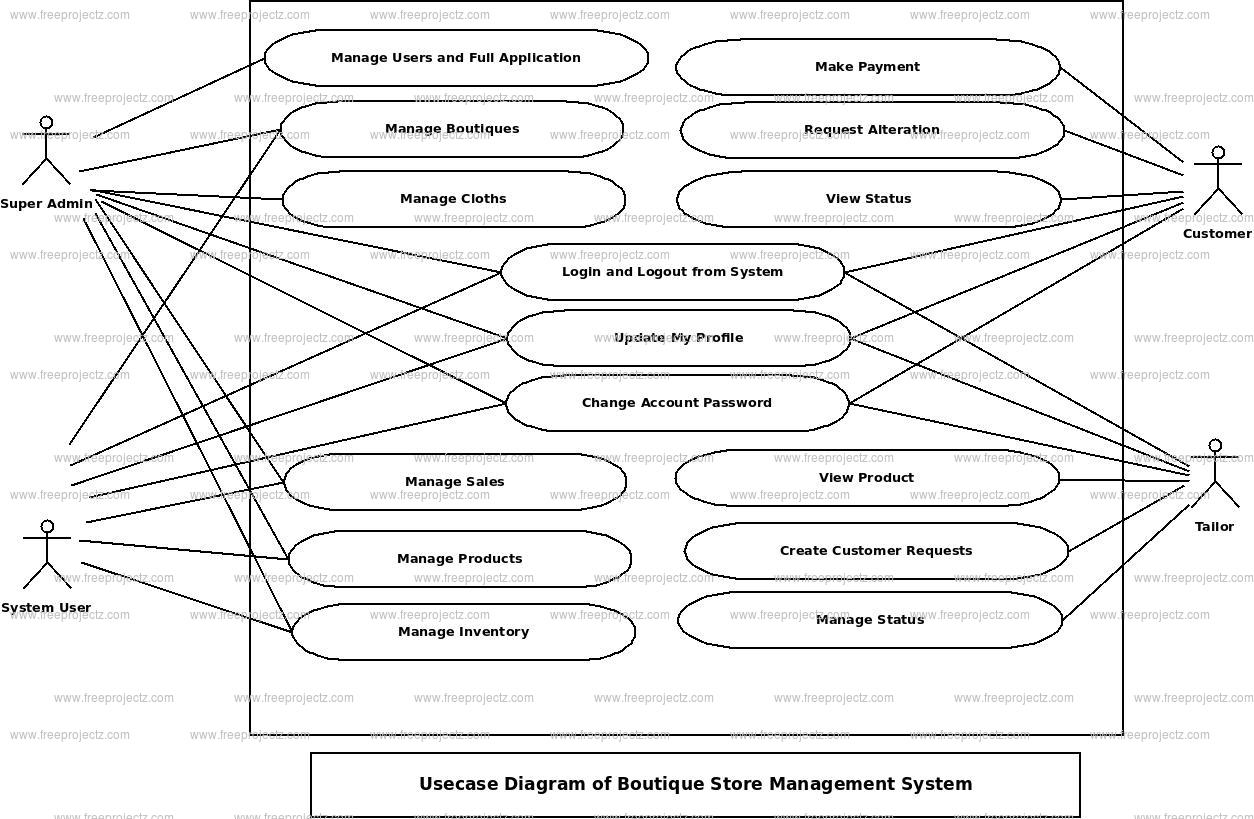

Use Case Diagram of Boutique Store Management System :

 Boutique Store Management System Use Case Diagram
